列车/车辆 多面 扫描成像检查系统Train/Vehicle Multi-surface Scanning Imaging Inspection System

列车底盘智能检测系统利用高清彩色线阵扫描、车号识别等技术,对行进中的铁路货车进行实时检测,形成高清彩色图像,并按车厢进行分割,达到真实还原现场的效果。同时运用深度学习、机器视觉等AI技术,完成车辆问题项的检测和标注。检车结束后系统自动生成检车报告,方便存档、分析。通过使用本产品

在线订购

产品介绍:

     列车底盘智能检测系统利用高清彩色线阵扫描、车号识别等技术,对行进中的铁路货车进行实时检测,形成高清彩色图像,并按车厢进行分割,达到真实还原现场的效果。同时运用深度学习、机器视觉等AI技术,完成车辆问题项的检测和标注。检车结束后系统自动生成检车报告,方便存档、分析。通过使用本产品,可以解决人工货检工作量大、效率低以及传统视频货检图像模糊、回放困难、无智能提示等问题。

    本产品率先将人工智能检测引入列车检测领域,使检测作业从“能看到、看得清”升级为“能看懂、会思考",开启了“机检”代替“人检”新时代!

    目前南京索安研发生产的列车扫描系统已获得多项专利和软件著作权。并有实战项目案例,被相关部门认可。

发明专利号:一种列车多面扫描成像检查系统  2021115899015)

外观专利号:列车多面扫描成像装置(TMSS)  2021304824694,

实用专利号:一种车辆顶部扫描装置  2021232713883,

                    一种匹配车辆高度自动升降的车侧扫描仪装置  2021232727405,


列车多面扫描成像装置(车底扫描带自动滑盖功能)

Product Description:

    The train chassis intelligent detection system uses high-definition color line matrix scanning, car number recognition and other technologies, real-time detection of moving railroad wagons, forming high-definition color images, and segmentation by carriage, to achieve the effect of real restoration of the scene. At the same time the use of deep learning, machine vision and other AI technology, complete the detection and labeling of the vehicle problem items. After the inspection, the system automatically generates the inspection report, which is convenient for archiving and analysis. Through the use of this product, can solve the manual cargo inspection workload, low efficiency and traditional video cargo inspection image blurred, playback difficulties, no intelligent tips and other issues.

    This product is the first to introduce artificial intelligence detection into the field of train inspection, so that the inspection operation from "can see, see clearly" upgraded to "can see, will think", opened the "machine inspection" instead of "human inspection" new era!

At present, the train scanning system developed and produced by Nanjing Suoan has obtained a number of patents and software copyrights. And there are real-world project cases, which are recognized by relevant departments.

Invention Patent No.:      A Train Multi-surface Scanning Imaging Inspection System 2021115899015)

Appearance Patent No.: Train Multi-surface Scanning and Imaging System (TMSS) 2021304824694,

Utility Patent No.:            A Vehicle Top Scanning Device 2021232713883,

                                        A vehicle side scanner device that matches the height of the vehicle for automatic lifting and lowering 2021232727405,

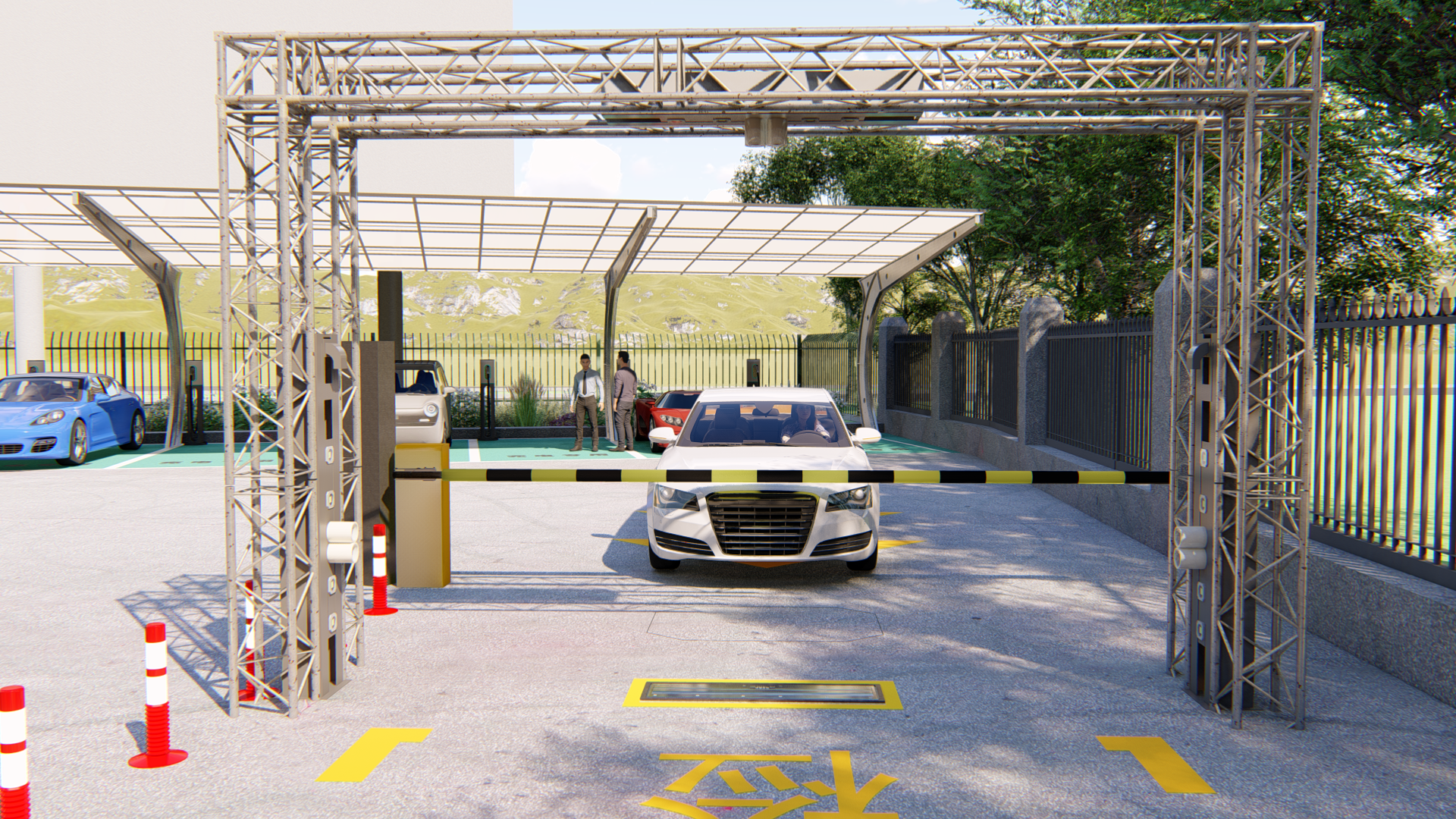

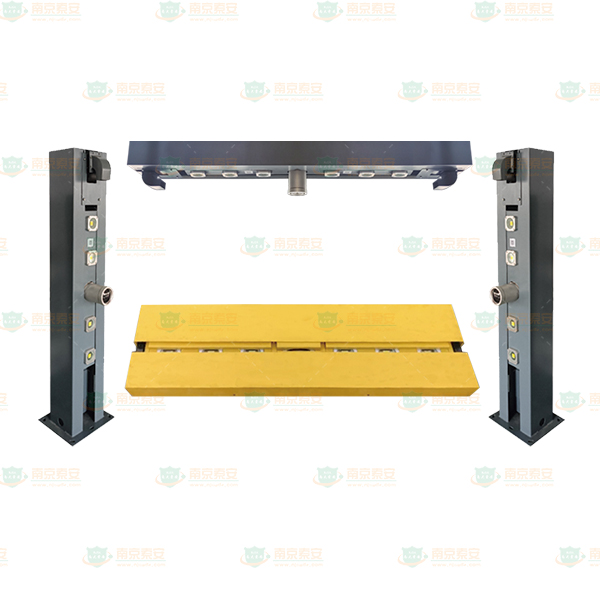

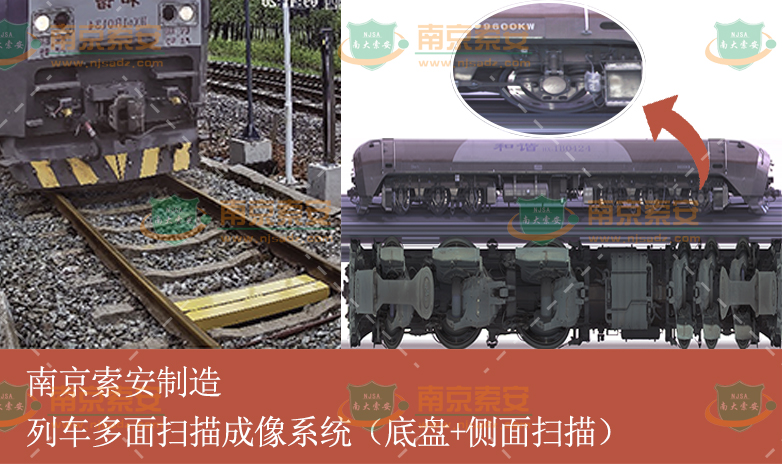

车辆多面扫描成像装置

应用场景:

海关铁路口岸反藏匿反偷渡反走私检查、

列车生产检测与维修检查段、

汽车检测站全车检查、

车辆租赁等场所车辆品质与行车安全检查。

Application Scenario:

Anti-hiding, anti-smuggling and anti-smuggling inspections at customs and railroad ports,

Train production inspection and maintenance inspection section,

Vehicle inspection station full vehicle inspection,

Vehicle leasing and other places vehicle quality and driving safety inspection.


功能概述:

1、车辆多侧面同时高清全幅完整扫描成像,并同步高清多视角全景监控视频存档留证;

2、电动滑轨同步伴随移动各个车辆侧面的图像采集相机匀速图像采集,确保扫描图像完整、4K超高清成像,可检测0.5mm细微物质或异常特征;

3、配置尘雪探测,可自动加热与除尘,免受尘雪气候环境影响;

4、智能全视角车侧及车顶补光照明及车侧或车顶180度全景成像;

5、配置温控系统可报警联动散热、除雾防冷凝;

6、可集成车牌、车号、箱号等识别,并可支持多个品牌的车底、车牌等采集相机接入,便于系统集成;

7、可采集安检车道内全景及车顶、车两侧及底盘多路视频,可智能拍照并关联保存;

8、可集成安检人员信息及车辆检测评估信息并关联记录查询;可启用智能判图后异常报警联动声光报警等协同工作;

9、可多个车道集成显示并上传中央管理平台;

10、可国产操作系统、嵌入式系统环境下运行;

11、支持多国语言界面切换。

Function overview:

1, the vehicle multi-side simultaneously high-definition full width complete scanning imaging, and synchronous high-definition multi-view panoramic surveillance video archive retention;

2. The electric slide is synchronized with the image acquisition camera on the side of each vehicle for uniform image acquisition to ensure the integrity of the scanned image and 4K ultra-high-definition imaging, which can detect 0.5mm fine substances or abnormal features;

3, equipped with dust and snow detection, can automatically heat and dust, free from the impact of dust and snow climate environment;

4, intelligent full view side and roof lighting and side or roof 180 degree panoramic imaging;

5, the configuration of temperature control system can alarm linkage heat dissipation, anti-fog and anti-condensation;

6, can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

7, can collect the panoramic view of the security lane and the roof, the two sides of the car and the chassis of the multi-channel video, can be intelligent photo and associated save;

8, can integrate security personnel information and vehicle detection and evaluation information and associated record query; It can enable cooperative work such as abnormal alarm linkage sound and light alarm after intelligent judgment;

9. Multiple lanes can be integrated display and upload to the central management platform;

10, can run under domestic operating system, embedded system environment;

11, support multi-language interface switching.


特色优势:

1、车辆多侧面同时高清全幅完整扫描成像,并同步高清多视角全景监控视频存档留证;

2、电动滑轨同步伴随移动各个车辆侧面的图像采集相机匀速图像采集,确保扫描图像完整、清晰

Characteristic advantage:

1, the vehicle multi-side simultaneously high-definition full width complete scanning imaging, and synchronous high-definition multi-view panoramic surveillance video archive retention;

 2. The electric slide is synchronized with the image acquisition camera on the side of each vehicle for uniform image acquisition to ensure that the scanned image is complete and clear.

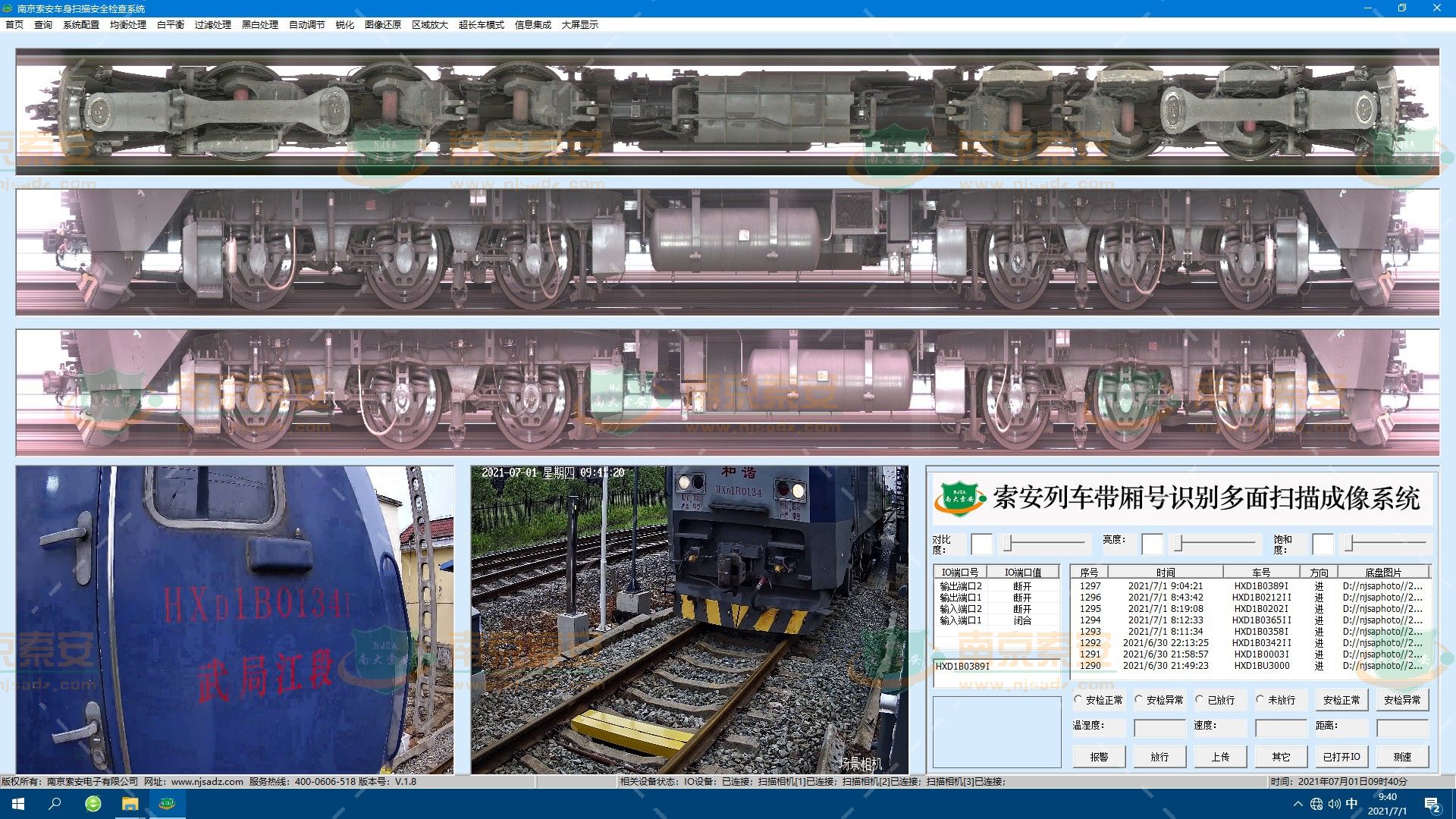

列车扫描界面 处理版.jpg

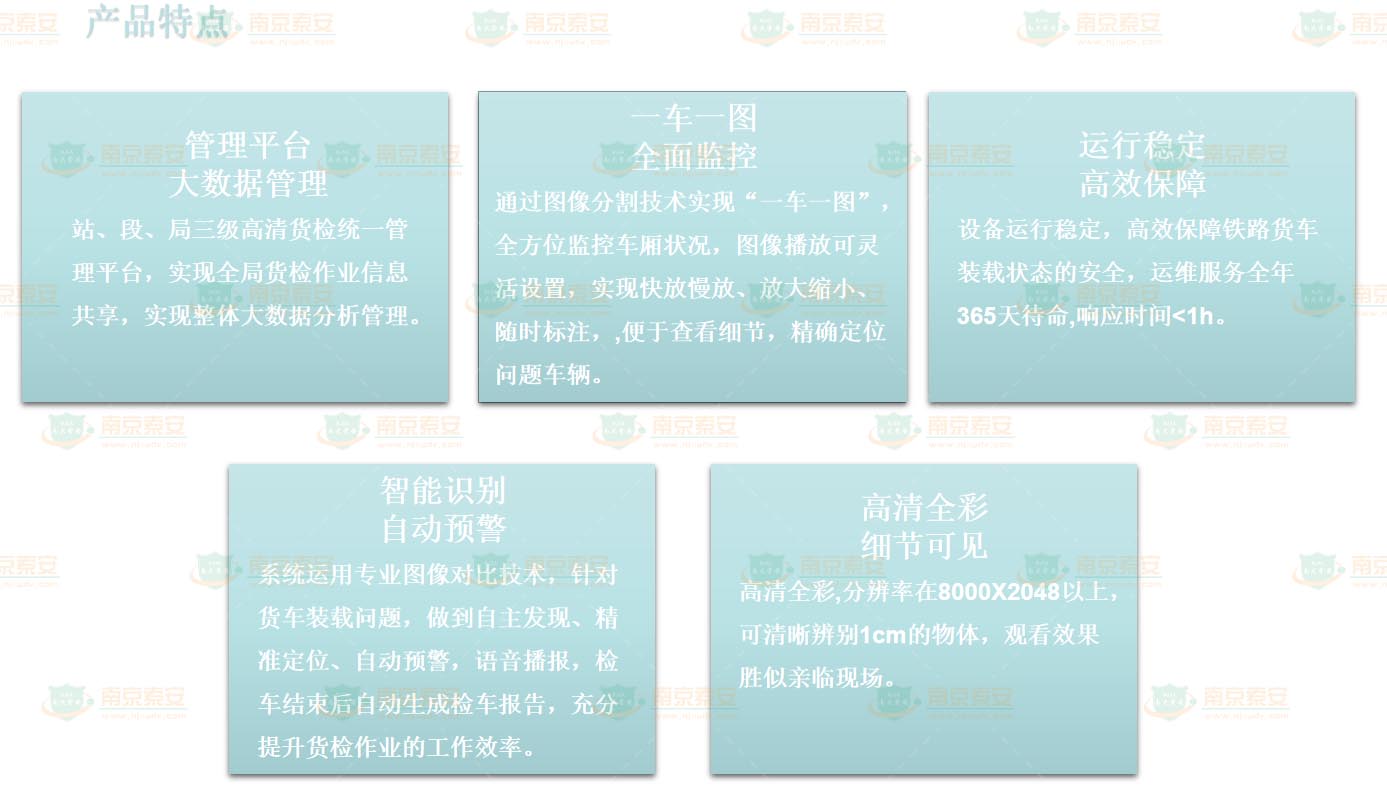

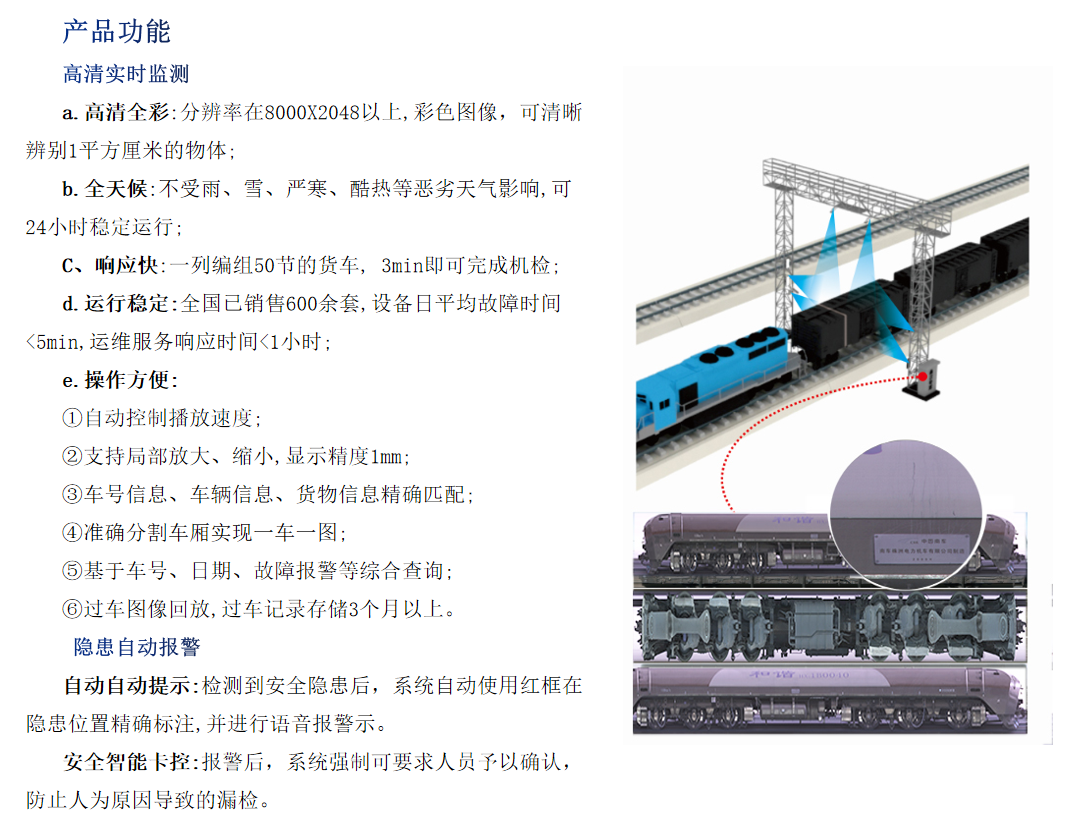

产品功能:

高清实时监测

a、高清全彩:分辨率在8000X2048以上,彩色图像,可清晰辨别1cm²的物体;

b、全天候:不受雨、雪、严寒、酷热等恶劣天气影响,可24小时稳定运行:

c、响应快:一列编组50节的货车,3min即可完成机检:d.运行稳定:全国已销售600余套,设备日平均故障时间<5min,运维服务响应时间<1小时;

e、操作方便:

①自动控制播放速度;

②支持局部放大、缩小,显示精度1mm;

③车号信息、车辆信息、货物信息精确匹配

④准确分割车厢实现一车一图;

⑤基于车号、日期、故障报警等综合查询:

⑥过车图像回放,过车记录存储3个月以上。隐患自动报警

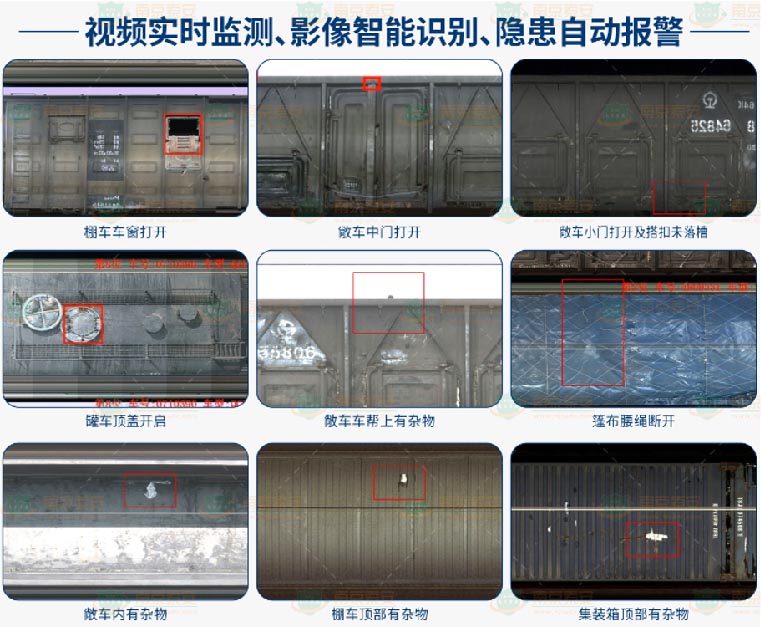

自动自动提示:检测到安全隐患后,系统自动使用红框在隐忠位置精确标注,并进行语音报警示。

安全智能卡控:报警后,系统强制可要求人员子以确认,防止人为原因导致的漏检。

Product Features:

High-definition real-time monitoring

a, high-definition full-color: resolution of 8000X2048 or more, color images, can clearly identify 1cm ² of the object.

b, all-weather: not subject to rain, snow, cold, heat and other inclement weather, can be 24 hours of stable operation.

c. Fast response: a train of 50 wagons, 3min can be completed machine inspection.

d. Stable operation: more than 600 sets have been sold nationwide, the average daily downtime of the equipment <5min, O&M service response time <1 hour.

e. Convenient operation.

① automatic control of playback speed; ② support for local zoom in and zoom out

② support for local zoom in and zoom out, display accuracy of 1mm; ③ vehicle number information, vehicle information

③Accurate matching of vehicle number information, vehicle information and cargo information.

④Accurately divide the car to realize one car one map; ⑤Based on the car number, date, cargo information, and the date of the car.

⑤Based on the vehicle number, date, fault alarm and other comprehensive query.

⑥Passing vehicle image playback, passing vehicle record storage for more than 3 months. Hidden Danger Automatic Alarm

Automatic Alert: After detecting the hidden danger, the system will automatically use the red box to precisely mark the hidden location and give a voice alarm.

Safe smart card control: after the alarm, the system mandatory personnel can be required to confirm the sub to prevent human causes caused by the omission of inspection.

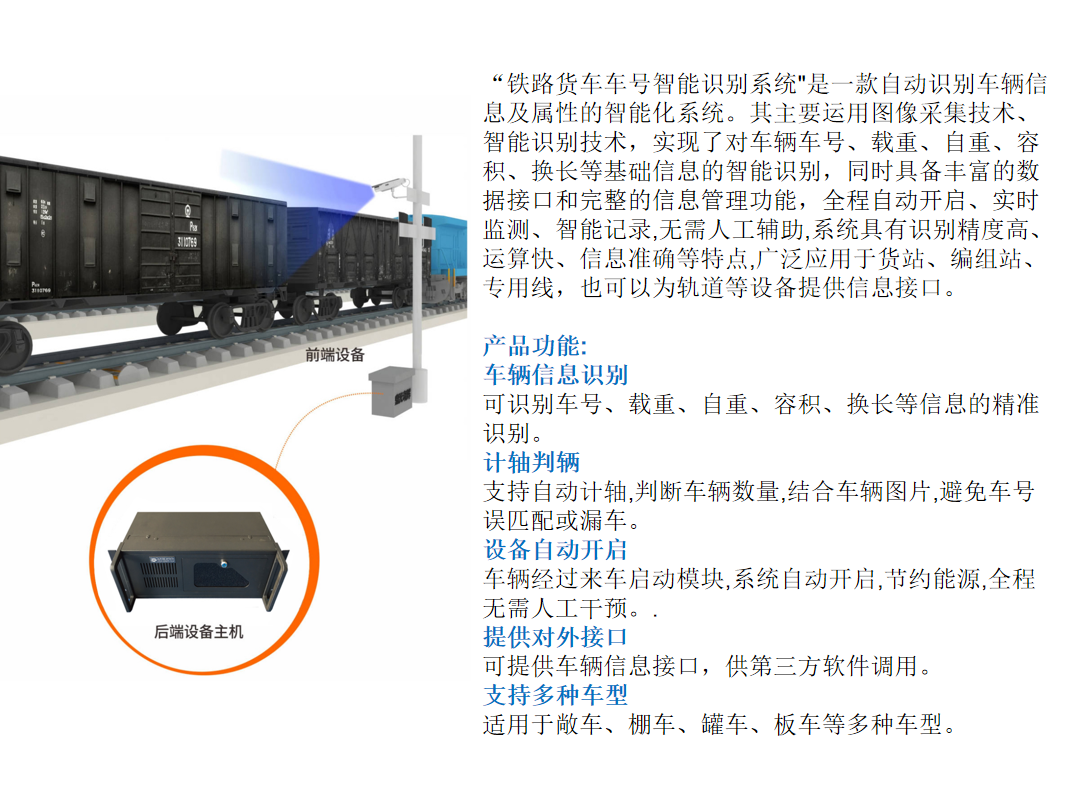

“铁路货车车号智能识别系统"是一款自动识别车辆信息及属性的智能化系统。其主要运用图像采集技术、智能识别技术,实现了对车辆车号、载重、自重、容积、换长等基础信息的智能识别,同时具备丰富的数据接口和完整的信息管理功能,全程自动开启、实时监测、智能记录,无需人工辅助,系统具有识别精度高运算快、信息准确等特点,广泛应用于货站、编组站、专用线,也可以为轨道等设备提供信息接口。

产品功能:车辆信息识别可识别车号、载重、自重、容积、换长等信息的精准识别。

计轴判辆:支持自动计轴,判断车辆数量,结合车辆图片,避免车号误匹配或漏车。

设备自动开启:车辆经过来车启动模块,系统自动开启,节约能源,全程无需人工干预。

提供对外接口:可提供车辆信息接口,供第三方软件调用。

支持多种车型:适用于敞车、棚车、罐车、板车等多种车型。

"Railroad Wagon Number Intelligent Identification System is an intelligent system that automatically identifies vehicle information and attributes. It mainly uses image acquisition technology and intelligent recognition technology to realize the intelligent recognition of basic information such as vehicle number, load, weight, volume, change length, etc. Meanwhile, it has rich data interfaces and complete information management functions, and the whole process of automatic opening, real-time monitoring, intelligent recording, without manual assistance, the system has the characteristics of high recognition accuracy, fast computing, and accurate information, and is widely used in freight stations, grouping stations, It can be widely used in cargo stations, grouping stations, special lines, and can also provide information interface for rail and other equipments.

Function:Vehicle information recognition can recognize vehicle number, load, weight, volume, change length and other information accurately.

Axle counting: support automatic axle counting, determine the number of vehicles, combined with vehicle pictures, to avoid mis-matching of vehicle numbers or missing vehicles.

Automatic opening of equipment: the system automatically opens when the vehicle passes the oncoming vehicle start module, saving energy and eliminating the need for manual intervention.

Provide external interface: provide vehicle information interface for third-party software to call.

Support multiple vehicle types: applicable to open trucks, shed trucks, tank trucks, panel trucks and other types of vehicles.
