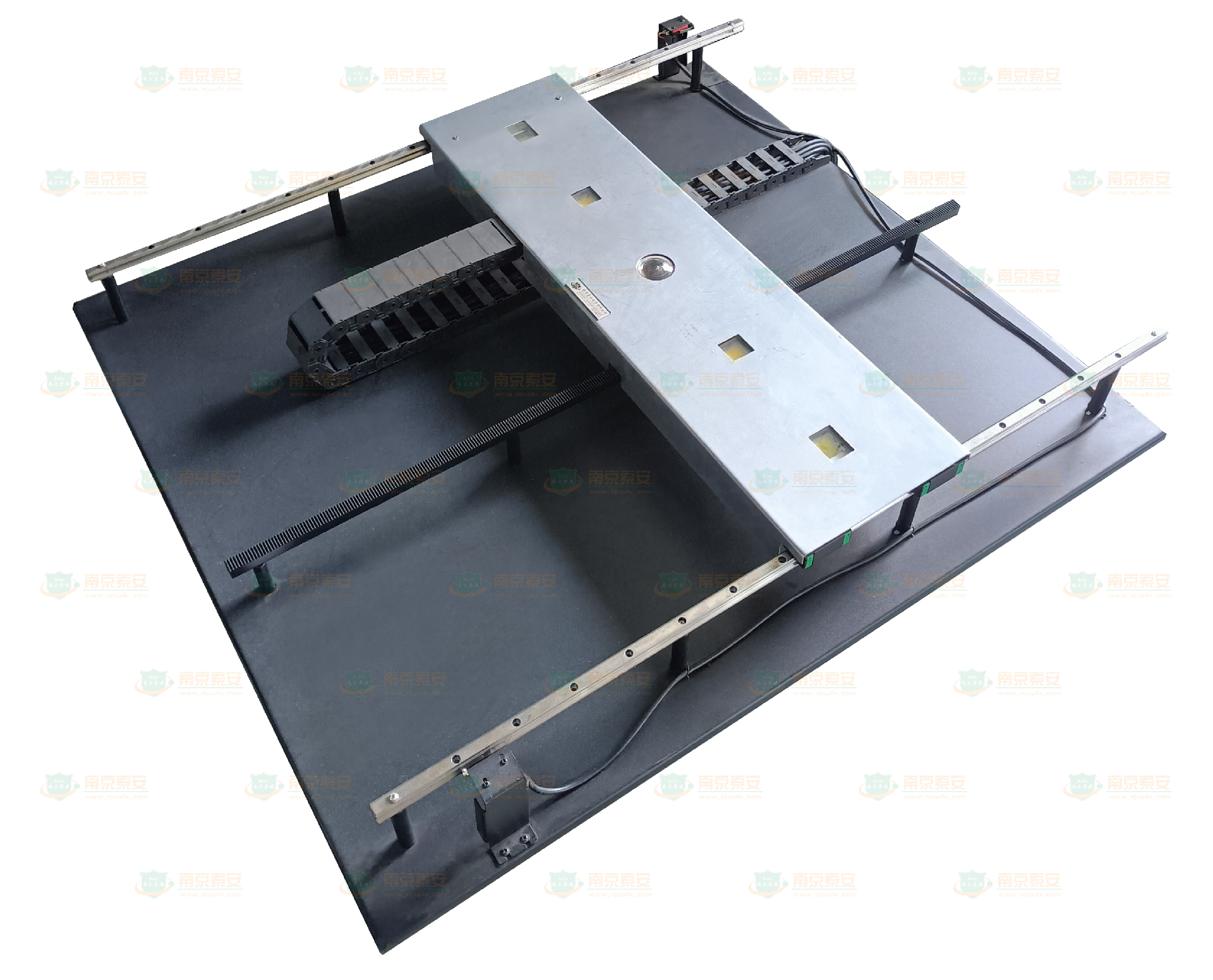

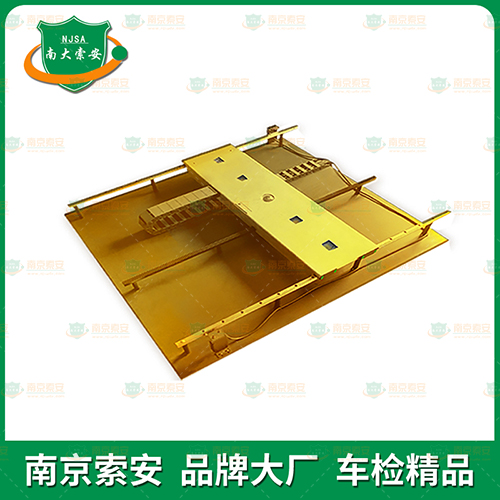

滑轨式立体多面车辆扫描系统Slide Rail Stereo Multi-Surface Vehicle Scanning System

1、扫描图像采集:数字高清高速千兆线扫描彩色线阵相机;GigE接口;监控图像采集: 数字高清高速千兆面阵彩色智能交通相机;3MP;(选配)2、拍摄宽度:≧4000mm;3、拍摄车辆长度:>1500mm;4、视场角度:≧175o;5、拍摄车辆高度:0~5000mm(适应不同底盘高度的车辆);6、车辆通过速度:(建

在线订购

产品信息:

滑轨式立体多面车辆扫描系统是一套集自动检测车辆、并对车辆底盘进行图像采集、显示、拼接、抓拍汇总、比对报警、自动环控为一体的车辆安检系统。

该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入政府机关、军事管理、银行库区、车站码头等重要安全保护场所;

防止车底携带毒品与枪支弹药等危险品、非法走私物乃至可疑人物通过海关、边防检查站,

防止被关押人员潜逃出监狱、看守所、戒毒所等;

同时可对列车、汽车等车辆底盘进行交通安全检测及车况质量检查评估等应用。

Product Information:

Slide Rail Stereo Multi-Surface Vehicle Scanning System is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.


应用场景:

1、监狱、看守所、戒毒所等的出入口防逃检查;

2、机场、政府、银行库区、大使馆、港口、码头、车站、军队、公安等重点场所;重点部位的停车场入口;大型会议、运动会等活动的车辆出入口的安全防范、反恐检查;

3、海关、边检口岸的检查卡口防走私、反偷渡检查;

4、交通安全检查站、车辆检测中心、4S店维修车间、新能源换电站等的车辆性能检测线。

Application Scenario:

1,Escape prevention inspection at the entrances and exits of prisons, detention centers and drug rehabilitation centers;

2,Airports, government, bank district, embassies, ports, docks, stations, military, public security and other key places; Parking lot entrances at key locations; Security precautions and anti-terrorism checks for vehicle entrances and exits of large conferences, sports meetings and other activities;

3,Customs, border inspection bayonet anti-smuggling, anti-smuggling inspection;

4,Traffic safety checkpoints, vehicle testing center, 4S shop maintenance workshop, new energy power station and other vehicle performance testing line.


1、扫描图像采集:数字高清高速千兆线扫描彩色线阵相机;GigE接口;

2、监控图像采集: 数字高清高速千兆面阵彩色智能交通相机;3MP;(选配)

3、拍摄宽度:≥4000mm;

4、拍摄车辆长度1500mm;

5、视场角度:175°;

6、拍摄车辆高度:0~5000mm(适应不同底盘高度的车辆);

7、车辆通过速度:(建议)0-50Km/h;(可根据现场实际情况调整车速);

8、图象采集方式:车辆检测系统自动触发、视频检测、手动触发;双向扫描;

9、底盘图像数据传输距离:≤100 米(TCP/IP);

10、图片类型:彩色JPEG格式;

11、车底图像分辨率:>1000万像素;

12、图片失真:小于5%;

13、照明组件:4颗单体密封LED面光源;寿命:60000h

14、系统供电:AC220V/50-60Hz/500W。


1Scanning image acquisition: digital high-definition high-speed gigabit line-scan color line array camera; GigE interface;

2、  Monitor image acquisition: digital high-definition high-speed gigabit line scan color intelligent traffic camera; 3MP; (optional)

3、Shooting width:≧4000mm;

4、Shooting vehicle length:>1500mm;

5、Field of view angle:≧175°;

6、Shooting vehicle height: 0 ~ 5000mm (to adapt to different chassis height of the vehicle)

7、Vehicle through speed: (recommended) 0-50Km / h; (can be adjusted according to the actual situation on site speed)

8image acquisition mode: vehicle detection system automatic trigger, video detection, manual trigger; two-way scanning;

9chassis image data transmission distance: ≤ 100 meters (TCP/IP)

10picture type: color JPEG format;

11undercarriage image resolution: > 10 million pixels;

12 picture distortion: less than 5%;

13lighting components: 4 single sealed LED surface light source; life: 60000h

14system power supply: AC220V/50-60Hz/500W.
