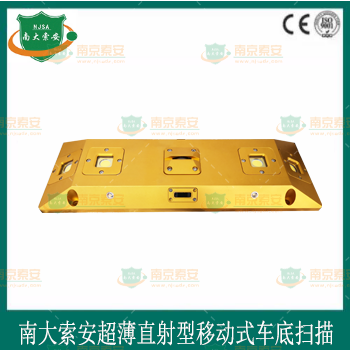

便携移动式 直视型 车底扫描系统Portable Mobile Direct View Vehicle Chassis Scanning System

移动式车辆底盘反藏匿成像系统是一套集自动检测车辆并对车辆底盘进行图像采集、显示、拼接、抓拍汇总、比对报警、自动环控为一体的车辆安检系统。该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入政府机关、军事管理、银行库区、车站码头等重要安全保护场所;防止车底携带毒品与枪支弹药等危险品、非法走私物

在线订购

产品信息

便携移动式直视型车底扫描系统是一套集自动检测车辆、并对车辆底盘进行图像采集、显示、拼接、抓拍汇总、比对报警、自动环控为一体的车辆安检系统。

该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入政府机关、军事管理、银行库区、车站码头等重要安全保护场所;

防止车底携带毒品与枪支弹药等危险品、非法走私物乃至可疑人物通过海关、边防检查站,

防止被关押人员潜逃出监狱、看守所、戒毒所等;

同时可对列车、汽车等车辆底盘进行交通安全检测及车况质量检查评估等应用。

Product Information

Portable Mobile Direct View Vehicle Chassis Scanning System is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.



应用场景

1、国家大型会议、运动会、展会等活动的车辆出入口的临时安全防范、反恐检查;

2、监狱、看守所、戒毒所等的临时出入口防逃检查;

3、机场、政府、银行库区、保税区、大使馆、港口码头、车站、军队、公安等重点场所的出入口、停车场的反恐防夹带检查;

4、海关、边检口岸的检查卡口临时的防走私、反偷渡检查;

5、交通安全检查站、车辆检测中心、4S店维修车间、新能源换电站等的车辆性能检测。

Application Scenario:

1. Temporary security prevention and anti-terrorism checks at the entrances and exits of vehicles for large national conferences, games, exhibitions and other events;

2, The temporary entrance and exit of prisons, detention centers, drug rehabilitation centers, etc. to prevent the escape check;

3, Anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, port terminals, stations, military and public security;

4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;

5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.


产品介绍

1、扫描图像采集:数字高清高速千兆扫描彩色相机;GigE接口;

2、拍摄宽度:≧4000mm;

3、拍摄车辆长度:≧16000mm;

4、视场角度:≧178º;

5、拍摄车底高度:0~2000mm(适应不同底盘高度的车辆);

6、车辆通过速度:(建议)1-30Km/h;(可根据现场实际情况调整车速);

7、图象采集方式:车辆检测系统自动触发;

8、底盘图像数据传输距离:≤100 米(TCP/IP)

9、图片类型:彩色JPG格式;

10、车底图片分辨率:优于6000*2048像素;

11、图片失真:小于5%;

12、具有良好的防潮、防雾、防腐蚀、防震动性能;

13、车底成像设备采用高强度抗压、整体防尘防水等级:IP66。

14、照明组件:4颗单体密封LED面光源;寿命:60000h

15、环境温度:-30度 - +60度

Product introduction

1、Scanning Image Capture:Digital HD high-speed gigabit scanning color camera; GigE interface;

2、Shooting width:≥4000mm;

3、Shooting Vehicle Length:≥16000mm;

4、Field of View Angle:≥178º;

5、Photographing Vehicle Chassis Height:0~2000mm(Adapt to different vehicle chassis height of the vehicle);

6、Vehicle passing speed:(Recommended)1-30Km/h;(Can adjust the speed according to the actual situation on the spot);

7、Image acquisition mode: vehicle detection system automatically triggered;

8、Vehicle chassis image data transmission distance: ≤ 100 meters (TCP / IP)

9、Image type: color JPG format;

10、Vehicle chassis picture resolution: better than 6000 * 2048 pixels;

11、Picture distortion: less than 5%;

12、Has a good moisture-proof, anti-fog, anti-corrosion, anti-vibration performance;

13、Vehicle chassis imaging equipment using high-strength pressure, overall dust and waterproof grade: IP66.

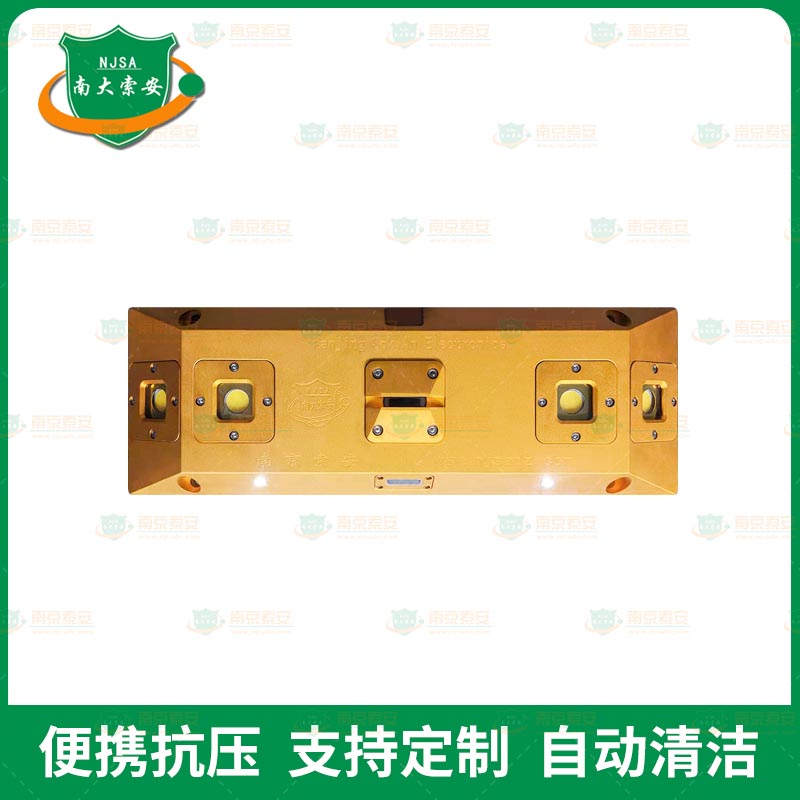

14、lighting components: 4 single sealed LED surface light source; life: 60000h

15、Ambient temperature:-30 degrees~+60 degrees


     功能概述:

1、可一体化移动、方便携带并高清完整车底成像;

2、超低的路面扫描直视式采集仪,对低底盘车辆可以无损自由通检;

3、双向缓坡式可固定路面;

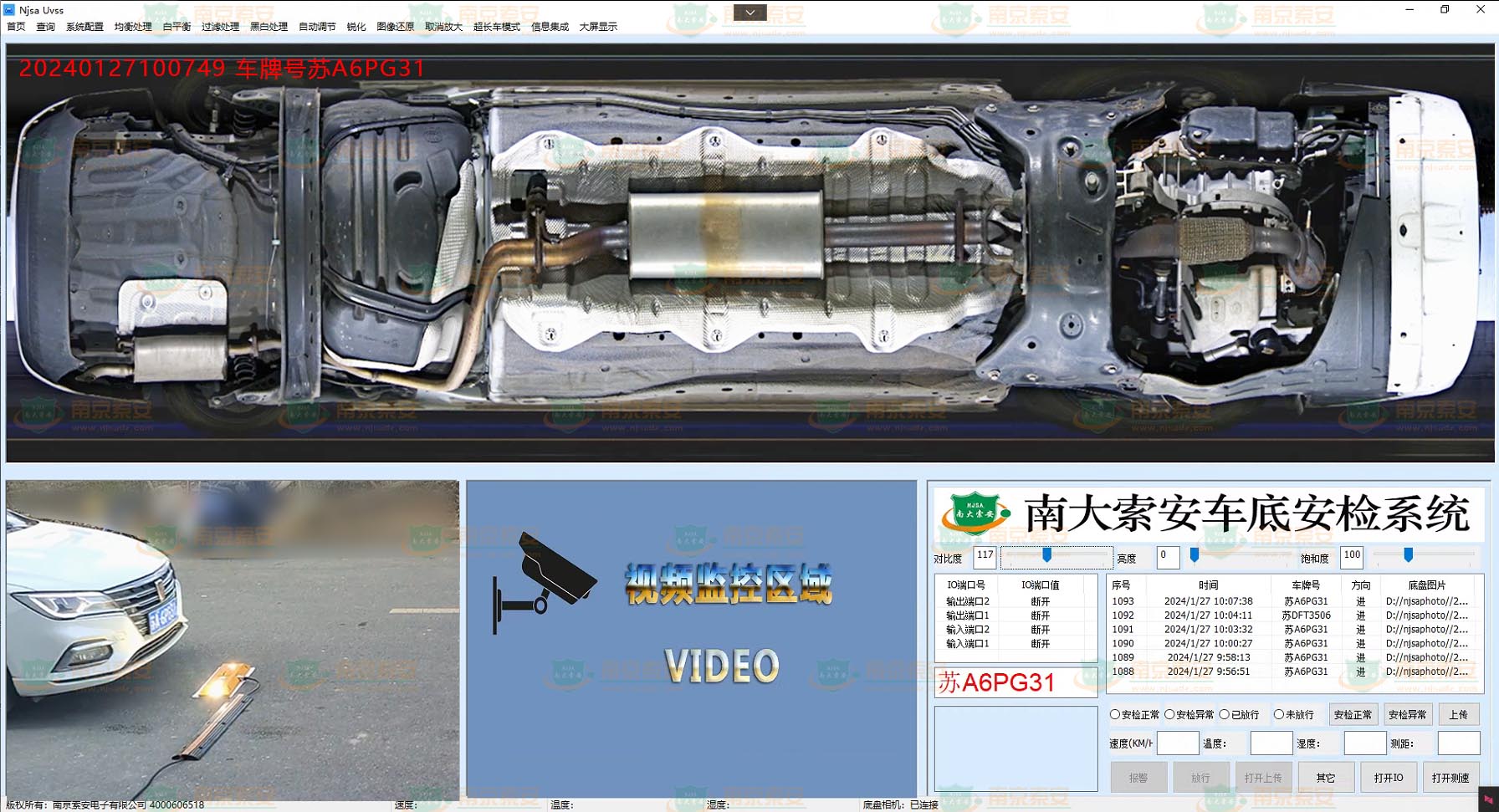

4、智能全视角车底补光照明及车底盘180度全景成像;

5、可集成车牌、车号、箱号等识别,并可支持多个品牌的车底、车牌等采集相机接入,便于系统集成;

6、可集成随车人员信息与物品安检信息并关联记录查询;

7、可启用智能判图后异常报警联动周边设备协同工作;

8、可无线联网多个车道集成显示并上传中央管理平台;

9、可国产操作系统、嵌入式系统环境下运行;

10、支持多国语言界面切换。

Function overview:

1, can be integrated mobile, easy to carry and high-definition complete car imaging;

2, ultra-low road scanning direct vision acquisition instrument, low chassis vehicles can be non-destructive free pass inspection;

3, two-way gentle slope can be fixed pavement;

4. Intelligent full-view underbody lighting and 180-degree panoramic imaging of chassis;

5, can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

6, can integrate the vehicle personnel information and items security information and associated record query;

7. Abnormal alarm linkage peripherals can be enabled after intelligent judgment;

8, wireless networking multiple lanes integrated display and upload to the central management platform;

9, can run under domestic operating system, embedded system environment;

10, support multi-language interface switching.


特色优势:

1.高出路面6.5CM便携可移动式车底检查成像仪,可使低底盘车辆无损自由通检;

2.智能感应式成像照明控制;

3.可人像采集与身份证录入与比对,

4.可智慧判图异常报警。

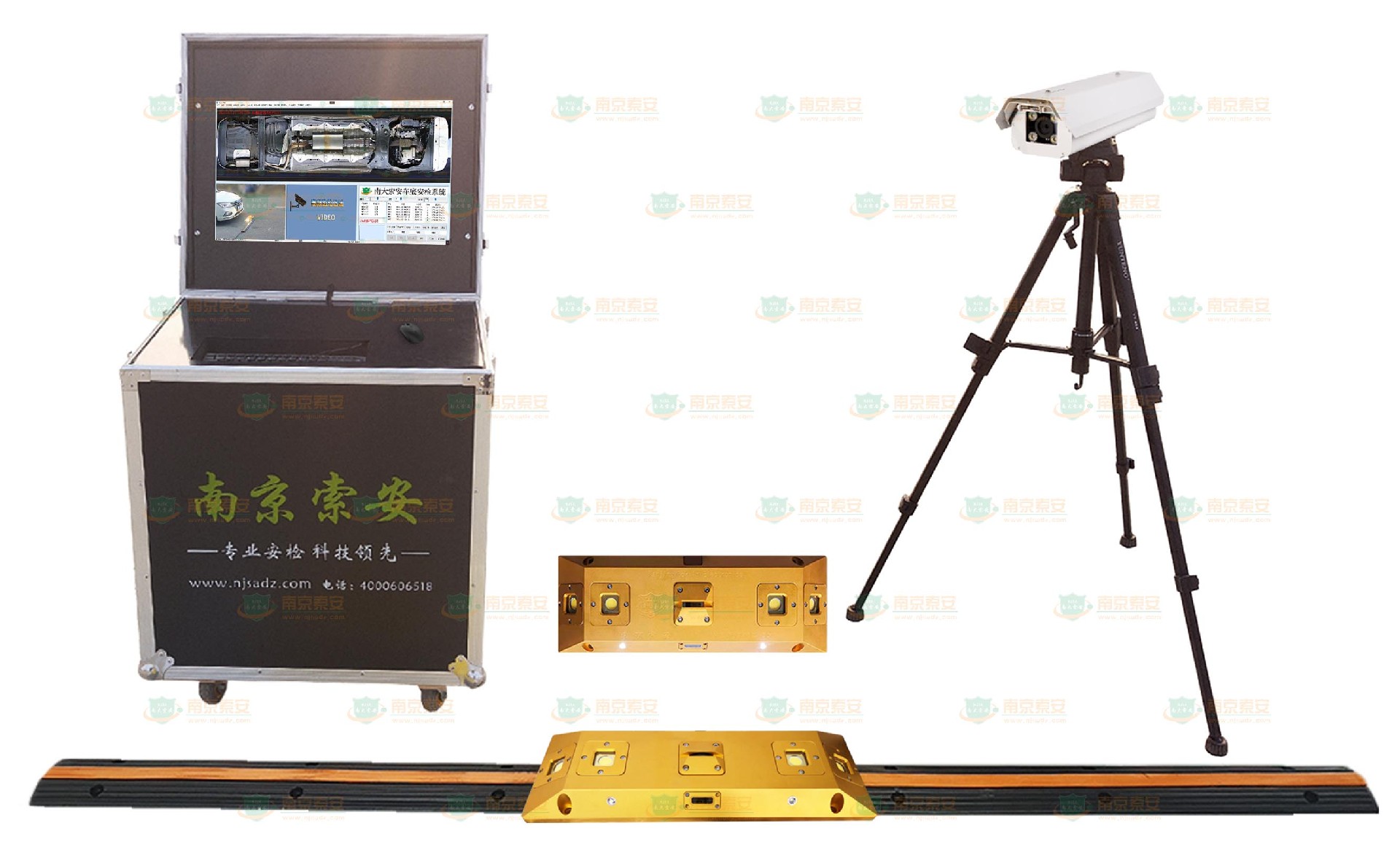

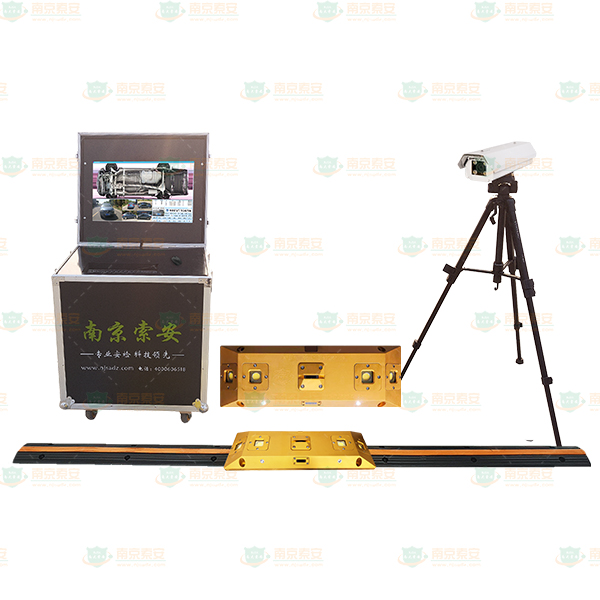

5.一体化航空箱可移动,方便快速设卡布防安检。

     Characteristic advantage:

1.6.5CM high above the road surface portable and movable vehicle chassis inspection imager, can make the low chassis vehicles without damage to the free through inspection

2.Intelligent induction imaging lighting control;

3.Can be portrait collection and ID card input and comparison,

4.Can wisdom judge map abnormal alarm.

5.The integrated aviation case can be moved to facilitate the quick installation of cards for security check.
