一、产品信息

Product Overview

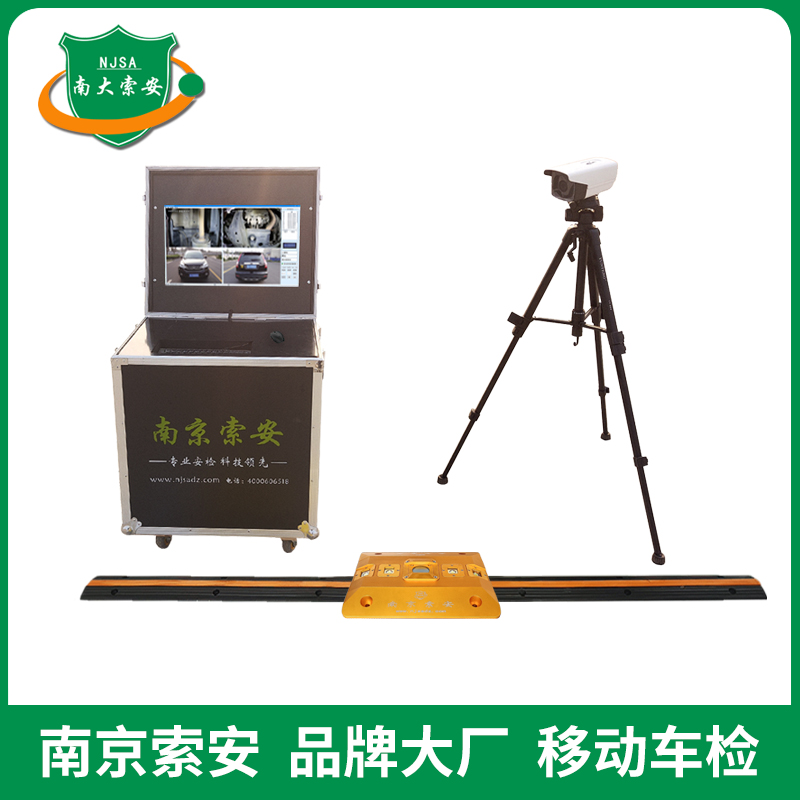

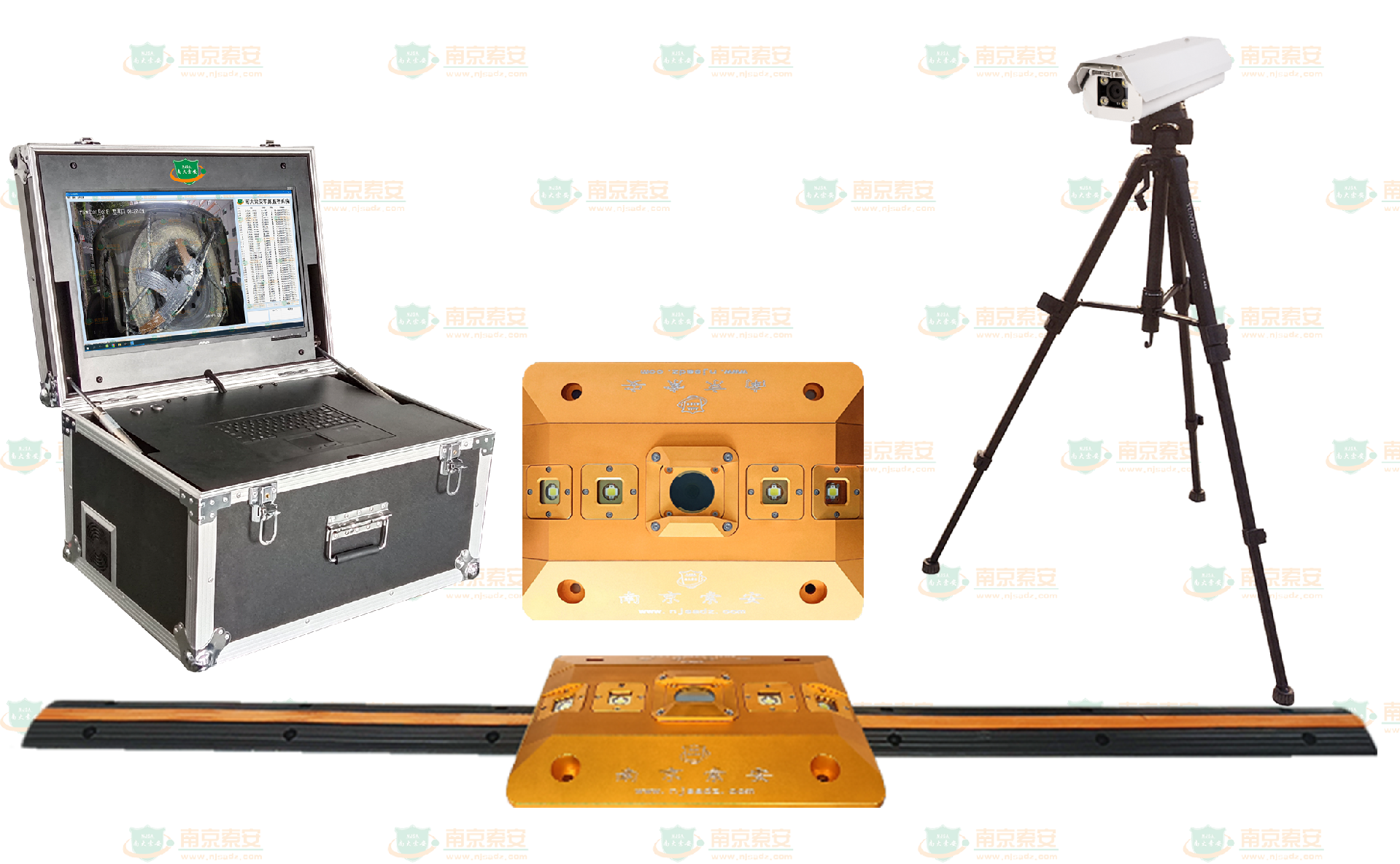

路面型快速车底反藏匿监控拍照系统是一套集自动对车辆底盘进行图像采集、显示、控制、录像、抓拍为一体的车辆安检管理系统。该系统能有效防止车底藏匿炸弹、武器、生化危险品、危险人物出入重要场所；防止车底携带毒品、非法走私物乃至非法移民通过检查站，该产品具有成像清晰度高、系统运行稳定可靠、安装简单快捷、低障碍通检等特点。

The pavement applicable vehicle chassis anti-concealment surveillance camera system is a vehicle safety check system which integrates automatic image acquisition, display, control, recording and capture of the vehicle chassis.The system can effectively prevent the hiding of bombs, weapons, hazardous chemicals under the vehicle, and dangerous individuals access to important security protection areas ;Prevent vehicle chassises from carrying drugs, illegal smuggled goods, and even illegal immigrants through checkpoints.This product boasts features such as high imaging clarity, stable and reliable system operation, easy and fast installation, and low barriers for inspection.

二、临时检查用路面快装型车底反藏匿拍照系统产品介绍

Product Introduction

智能控制器工作电压 AC220V, 前端反藏匿拍照工作电压 DC12V；

高强度结构双向防撞击缓坡式设计，高强度钢体加工，并上端与两侧都有防碾压保护装置，防水航空电缆接头，用于各种路面工作的地方；

智能相机保护罩采用独特的全景视窗设计，180度无死角遮挡；

设备可选配除尘、吹雪功能，使得日常情况下设备落灰、有异物，无法及时清理导致相机拍摄物体不清晰的情况得到有效解决；

内置不低于400万进口高清数字CMOS ICR 180度广角专用车底摄像机  自动光圈/自动背光补偿；

车底视角：F2.0水平视场角180，垂直视场角100°；

电子快门：1/3秒至1/100,000秒；

支持宽动态范围：120dB；支持3D数字降噪；

对车辆底盘拍照的图像清晰度：2560×1440@25fps;

视频联网支持：GB28181、ONVIF、ISAPI等监控平台对接协议；

军用级坚固金属部件，双向全密封结构，防腐蚀、防震、防压、防冷凝；

可通过无线雷达、激光探测可自动启用辅助大功率面光源照明；

可内置温度、湿度探测器，可自动控制加热、除湿、智能风控等；

设备具有电加热功能，防止极端环境下透镜产生冷凝现象；

独创的路面型快捷临检安装使用方式，适用于大型会议、运动活动场馆、展馆、重要管控检查道口等出入口，用以监视检查车辆底部和其它目标，防脱逃、防渗透潜入等反恐安检、车底安全隐患排查与整治；

室内/室外使用；

辅助照明控制：手动、自动（地感、光感、雷达、激光）

接头：防水密封套（随机提供）

车底反藏匿监控拍照路面安装型设备尺寸：400*500*60mm

The intelligent controller working at a voltage of AC220V,the front-end anti-concealment camera working at a voltage of DC12V；

High-strength structure with bi-directional anti-collision cushion design, processed with high-strength steel body, and equipped with anti-rolling protective devices on the top and both sides. It also has waterproof aviation cable joints and is used for various road surface；

The intelligent camera protective cover adopts a unique panoramic window design that covers 180-degrees without dead angle；

The device can be equipped with dust removal and snow blowing functions, which effectively solve the problem of dirty lens caused by dust accumulation or foreign objects that cannot be cleaned in time during daily use；

Built-in no less than 4 million imported HD digital CMOS ICR 180-degree wide-angle special vehicle chassis camera with automatic aperture and automatic backlight compensation；

Chassis view angle: horizontal field of view of 180 degrees and vertical field of view of 100 degrees with F2.0 aperture；

Electronic shutter: 1/3 second to 1/100,000 second；

Support for wide dynamic range of 120dB and 3D digital noise reduction.

Image clarity : 2560×1440@25fps；

Video networking support: docking protocols for monitoring platforms such as GB28181, ONVIF, ISAPI, etc；

Military-grade rugged metal components, two-way fully sealed structure, corrosion-resistant, shock-resistant, pressure-resistant and anti-condensation.

It can automatically turn on auxiliary high-power surface light source illumination through wireless radar, laser detection；

It can be equipped with built-in temperature and humidity sensors, which can automatically control heating, dehumidification, and intelligent air control.The equipment has an electric heating function to prevent condensation on the lens in extreme environments；

The innovative pavement applicable quick-assembly method is suitable for large-scale conferences, sports venues, exhibition halls, important control inspection entrances, etc. It can monitor the vehicle chassises and other targets to prevent escape, infiltration, and other anti-terrorism security checks, as well as to identify and rectify vehicle chassises safety hazards；

Indoor/outdoor use；

Auxiliary lighting control: manual, automatic (with ground sensor, light sensor, radar and laser)

Connector:Waterproof sealing sleeve (provided randomly)

Size:400*500*60mm

三、车底反藏匿全方位监控拍照合成软件

Software introduction

车底反藏匿全方位监控拍照合成软件系统，具备高清实时监控与场景记录功能，可由只能控制器通过车辆检测对车前部、车尾部、车顶部、车底部、车两侧等部位进行抓拍，自动车牌识别、自动提示输入车辆及驾乘人员带车及检查人员相关的信息，并可查询、打印、自动在一张表图上显示本次车辆通过检查时的车辆、相关人员的信息和车辆各部位监控抓拍的合成图像。

车牌图像获取并车牌号码识别；

车辆检测信号的识别，通过雷达或对射探测器或地感经IO控制器实现；

多路实时监控窗口；

通过车检感知IO信号进行抓拍并存储；

考虑到进出监管区域的车辆长短不一，可设置人工抓拍按键，实现车身前、后、左、右、顶等多部位抓拍；

整个车辆底盘检查流程可通过地感线圈或光传感器、无线雷达、精准激光对射带声光引导系统的车检器等实现高度自动化操作；

软件为用户提供了极为丰富和便捷的操作功能，设计预留了大量可扩展的软硬件接口，极大的方便了用户操作，同时满足了用户未来对系统不断扩展升级的需要。

The vehicle chassis anti-concealment omni-directional surveillance camera synthesis software system has HD real-time surveying and scene recording functions. It can snapshot images of the front, rear, top, bottom, and sides of the vehicle by the intelligent controller. It can automatically recognize the license plate and prompt the input of information related to the vehicle, drivers, passengers, and inspection personnel. It can also query, print, and automatically display the information of the vehicle and related personnel during the inspection, as well as the synthesized images of the vehicle's various parts captured by the camera.

Vehicle license plate image acquisition and license plate number recognition.

Identification of vehicle detection signals, achieved through radar or emission detectors or ground sensors IO controllers.

Multi-channel real-time monitoring window.

Snapshot and storage through vehicle detection sensor IO signal.

Considering that vehicles access to the regulated area vary in length, an artificial capture button can be set up to achieve multi-part captures such as front, rear, left, right, top, etc.

The entire vehicle chassis inspection process can be highly automated using ground sensing coils or optical sensors, wireless radar, precise laser beam guidance systems, and vehicle detectors with sound and light guidance systems；

The software provides users with rich and convenient operation functions, and a large number of expandable software and hardware interfaces have been reserved in the design, greatly facilitating user operations and meeting the needs of users for system expansion and upgrades in the future.
