一、产品简介Product Overview：

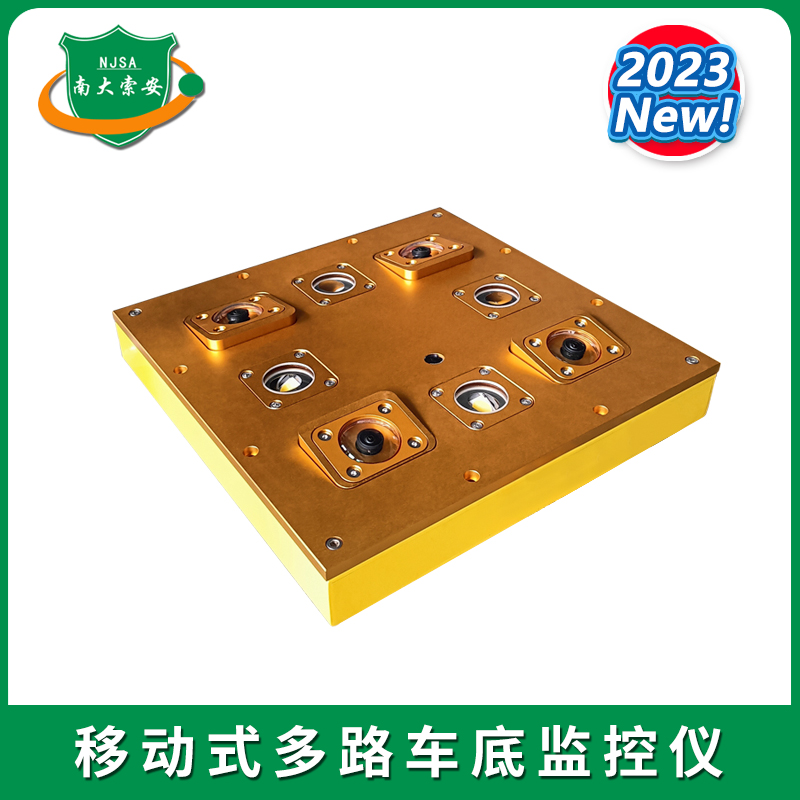

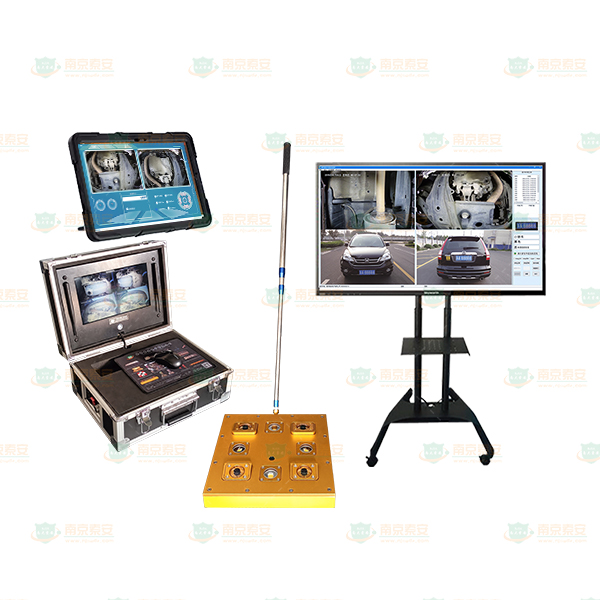

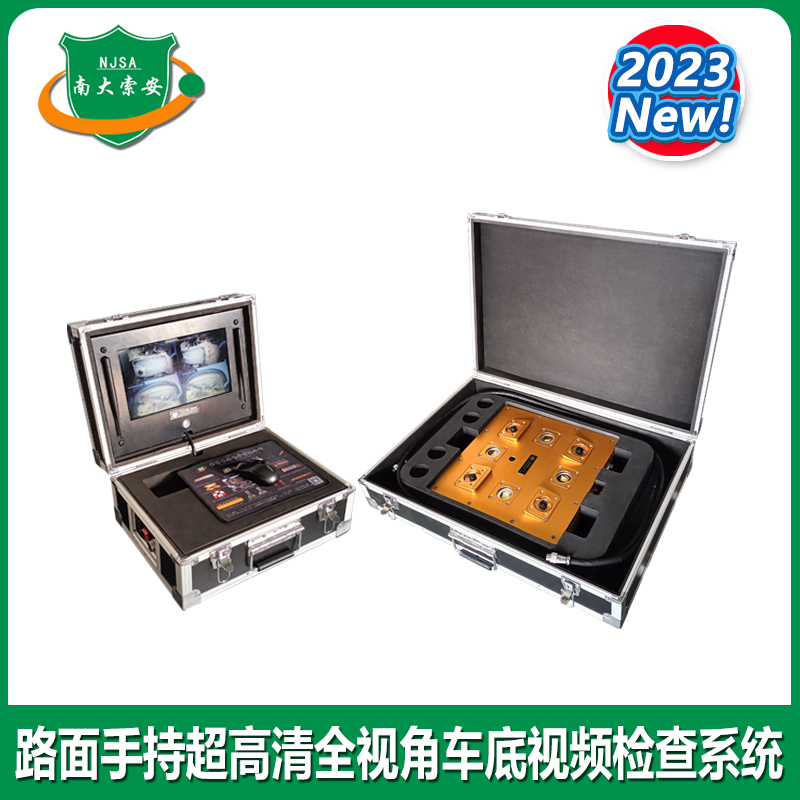

索安JZ600-D5-RH(D)-4M便携手持与路面两用型4方向超高清车底监控系统是一款多功能型新型产品，它可以同时显示车辆底盘的四个方向的超高清图像，扩展了全车底的视野，既可以手推移动，也可摆放于路面，两种检测模式都可以对车底违禁物或车况进行安全检查，可以很便捷地布防在要求对出入口、通道口的车辆进行检查。通过对被检车辆底部图像进行采集，以确定车辆底部是否加装违禁物品或夹带管控物品、藏匿涉罪人员或车辆进行了非法改装或存在安全行驶的隐患。该产品具有4个方向的超高清实时监控、抓图、录像及回放及车牌识别与车辆进出记录等功能，很方便将图像存储到PAD或小移动工控机存储卡上做备份也可以通过WIFI或5G等无线方式将前方车底检查图像传输到后方指挥平台集中监管，可以让现场安检人员快速便捷地进行安全检查，也同时能让后方指挥人员能远程决策指挥，大大提高了安检工作效率，增强了安全管控的科技水平。

JZ600-D5-RH(D)-4M portable handheld and pavement applicable dual-use 4-way ultra-HD vehicle chassis surveillance camera system is a multifunctional new product,It can display ultra-HD images of the four directions of the vehicle chassis at the same time, expanding the view of the entire bottom of the vehicle.It can be moved by hand or placed on the pavement,both of these detection modes can carry out safety check on prohibited items or conditions underneath the vehicle.It is convenient to deploy the product to check vehicles at any required entry and exit points.。By acquiring images of the vehicle chassis, it can identify whether prohibited items or controlled items are installed, whether criminal personnel or vehicles are hidden, or whether the vehicles have been illegally modified or have potential safety hazards for safe driving.The product features real-time monitoring, image capture, video recording and playback, license plate recognition, and vehicle entry and exit records in four directions with ultra-HD.The system can easily store images on the storage of PAD or small mobile control computer as backups .The vehicle chassis images from front-end can be transmitted to the rear command platform for centralized supervision through wireless methods such as WIFI or 5G.It enables on-site security personnel to carry out security checks quickly and conveniently, and allows rear command personnel to make remote decisions and commands, greatly improving the efficiency of security checks and enhancing the technological level of security management.

二、产品特点Product features：

1、采用10寸或配置更强的PAD显示与处理程序信息，或配置15寸彩色显示器配置微型工控机来运行车底监控拍照系统软件及存储安检信息，软件显示可以进行多国语言设置。

2、4个朝不同方向的超高清数字摄像机，多方向、无死视角、多画面去观看车辆底盘，安全检查结果更清晰明了。

3、车底检查仪配置车辆自动检测模块，可以自动检测来车并自动对车底补光。也可在光线不充足的情况下，自动给各摄像机补光，让车底检查更清晰。同时补光亮度可以调节。

4、各次对车辆的检查结果可查询，信息包括车牌号码、来车日期时间、受检时的拍照与录像等信息。检查结果可反复观看，并保存留档。可本机存储也可以云端上传、远程监管与回查。

1. The product features a 10-inch PAD or a more powerful configuration for displaying and processing program information, or a 15-inch color display with a mini industrial computer for running the vehicle chassis surveillance camera system software and storing security check information. The software display can be set in multiple languages.

2. The product features 4 ultra-HD digital cameras facing different directions, providing a multi-directional, no blind angle view of the vehicle chassis, making inspection results clearer.

3. The system is equipped with a vehicle automatic detection module, which can automatically detect incoming vehicles and automatically supplement light to the chassis. It can also automatically supplement light to each camera in low-light conditions, making the chassis clearer. The brightness of the supplemental lighting can be adjusted as well.

4.The inspection results of each vehicle can be queried, including information such as license plate number, date and time of arrival, and photos and videos taken during the inspection. The inspection results can be reviewed repeatedly and stored as records. They can be stored locally on the device or uploaded to the cloud for remote supervision and retrieval.

三、产品技术参数

1、显示器、工作主机 Display、Host

2、摄像头Camera

本仪器具有4个摄像机：1/3" Progressive Scan CMOS，最低照度：0.01Lux @(F1.2,AGC ON) ,0.028Lux，@(F2.0,AGC ON) ,0 Lux with IR ，视频压缩标准：H.265 /H.264/ MJPEG。

镜头：水平视场角 180°,垂直视场角 100°。

本仪器设有4个补光源 COB LED补光灯,采用智能自动感应式补光。高亮度12V LED灯补光，在光线不充足的情况下，可以给摄像头补光，使之观看事物更清晰。补光源亮度可以调节。

工作电压：DC12V （可充电）

推杆连杆长度： 1.3米

摄像头底座装置高度：9.5cm

工作温度： -10℃ - +50℃（℃）

净重：8.6Kg

毛重： 15.1Kg

机身包装：74*42*7cm （铝箱包装）

This instrument has 4 cameras: 1/3" Progressive Scan CMOS, minimum illumination: 0.01Lux @(F1.2, AGC ON), 0.028Lux @(F2.0, AGC ON), 0 Lux with IR, video compression standards: H.265/H.264/MJPEG.

Lens: Horizontal field of view 180°, vertical field of view 100°.

This instrument is equipped with 4 fill light sources COB LED fill light, using intelligent automatic induction fill light. High-brightness 12V LED light can provide fill light for the camera in low-light conditions, making it clearer to observe objects. The brightness of the fill light source can be adjusted.

Working Voltage：DC12V （Rechargeable）

Length of the push rod ：1.3m

Height of the camera base device：9.5cm

Working temperature： -10℃ - +50℃（℃）

Net weight：8.6Kg

Gross weight：15.1Kg

Dimensions of the device packaging：74*42*7cm （Aluminum case packaging）
