一、Product presentation

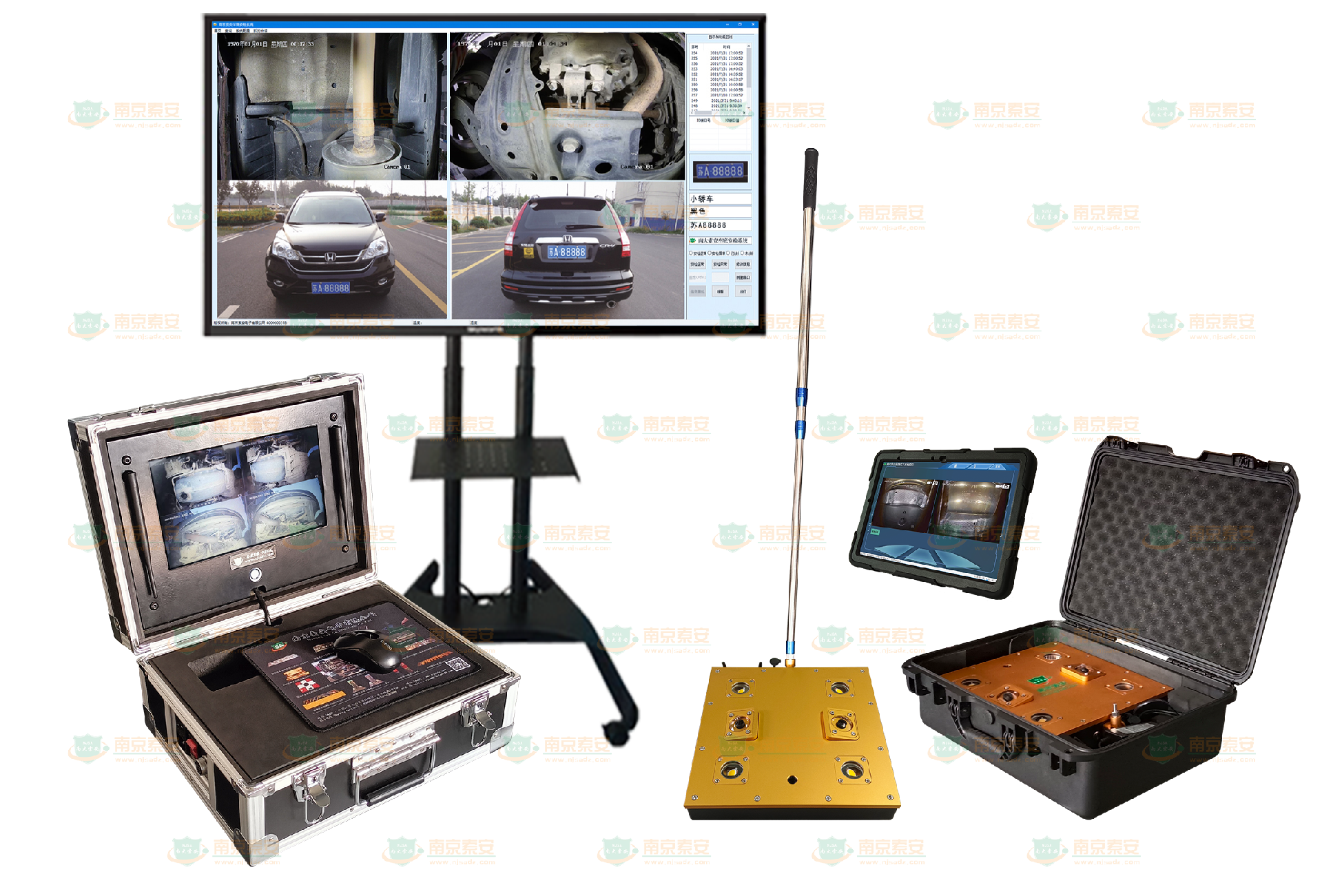

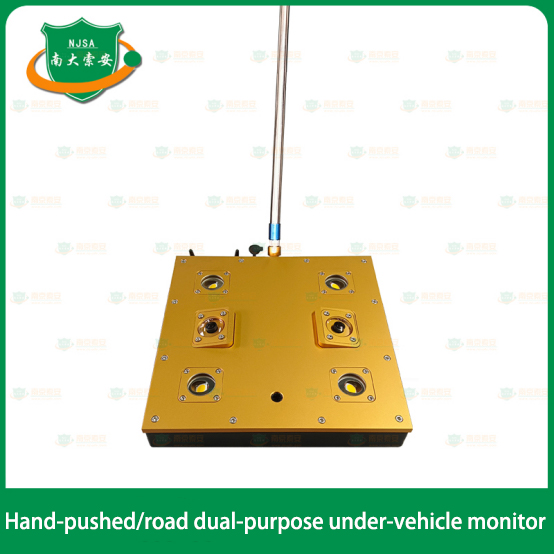

Hand-push type and road-type dual-use under vehicle 2-view monitoring and photo system is a multi-functional new product, which can simultaneously display the under vehicle of the two directions of the ultra-high-definition image, expanding the vision of the entire under vehicle , both hand-push mobile, can also be placed on the road, both inspection modes can be under the vehicle prohibited substances or vehicle conditions for security checks, can be very convenient arming in the requirements of the entrances and exits, access points to the vehicle Inspection. The image of the bottom of the inspected vehicle is captured to determine whether the bottom of the vehicle is retrofitted with prohibited items or entrapped with controlled items, hiding people involved in crime or the vehicle has been illegally modified or there are hidden dangers to safe driving. The product has two directions of ultra-high-definition real-time monitoring, capture, video and playback and license plate recognition and vehicle access records and other functions, it is very convenient to store the image to the PAD or a small mobile industrial computer memory card for backup can also be through WIFI or 5G and other wireless ways to the front of the vehicle chassis inspection images transmitted to the rear of the centralized supervision of the command platform, which can allow on-site security personnel to carry out quick and convenient security inspections At the same time, it also allows the rear commanders to make decisions remotely, which greatly improves the efficiency of the security check and enhances the scientific and technological level of security control.

二、Product feature

1. The product features a 10-inch PAD or a more powerful configuration for displaying and processing program information, or a 15-inch color display with a mini industrial computer for running the under vehicle surveillance camera system software and storing security check information. The software display can be set in multiple languages.

2. The product features 2 ultra-HD digital cameras facing different directions, providing a multi-directional, no blind angle view of the  vehicle chassis, making inspection results clearer.

3. The system is equipped with a vehicle automatic detection module, which can automatically detect incoming vehicles and automatically supplement light to the chassis. It can also automatically supplement light to each camera in low-light conditions, making the chassis clearer. The brightness of the supplemental lighting can be adjusted as well.

4.The inspection results of each vehicle can be queried, including information such as license plate number, date and time of arrival, and photos and videos taken during the inspection. The inspection results can be reviewed repeatedly and stored as records. They can be stored locally on the device or uploaded to the cloud for remote supervision and retrieval.

三、Product's Technical Parameters

1、Display、Host

2、Camera

Lens: Horizontal field of view 180°, vertical field of view 100°.

This instrument is equipped with 4 fill light sources COB LED fill light, using intelligent automatic induction fill light. High-brightness 12V LED light can provide fill light for the camera in low-light conditions, making it clearer to observe objects. The brightness of the fill light source can be adjusted.

Working Voltage：DC12V （Rechargeable）

Length of the push rod ：1.3m

Height of the camera base device：9.5cm

Working temperature： -10℃ - +50℃（℃）
