Portable wireless Bi-directional under vehicle scanning is a set of automatic vehicle inspection, and vehicle chassis image acquisition, display, splicing, capture summary, comparison alarm, automatic ring control as one of the vehicle security system.

The system can effectively prevent the vehicle chassis to hide bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank storage areas, stations and terminals and other important security protection places;

Preventing the vehicle chassis from carrying dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons through customs and border checkpoints.

Preventing dangerous elements from driving into large national conferences, sports events, concerts, exhibitions, stadiums and other temporary security crowded places.

Prevent detainees from absconding from prisons, detention centers and drug rehabilitation centers;

At the same time, it can be used for traffic safety inspection and vehicle condition quality inspection and evaluation of trains, cars and other vehicle chassis.

Application Scenario：

1,Temporary security prevention and anti-terrorism inspection of vehicle entrances and exits of large national conferences, sports events, concerts, exhibitions, stadiums and other activities;

2, Prisons, detention centers, drug rehabilitation centers and other entrances and exits to prevent escape inspection;

3, anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, ports and terminals, stations, armies, and public security;

4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;

5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.

Product introduction

Equipment Size: 400*600*55mm

Transmission mode: wireless WIFI

Scanning vehicle width: greater than 4000mm

Scanning length: support unlimited length vehicle scanning

Scanning direction: bidirectional scanning

Field of view angle: 180º

Picture type: color JPG format;

Underbody picture resolution: 2048*n

Picture distortion: less than 5%;

Dustproof and waterproof grade: IP68 (completely dustproof and waterproof immersion)

Image acquisition mode: automatically triggered by vehicle detection system

Lighting components: top, both sides of the four LED fill light bar automatically fill light

Imaging equipment surface structure using square high-strength military special grade aluminum products;

Imaging equipment multiple sealing design: dust-proof, moisture-proof, anti-fog;

Shooting height of the undercarriage: ＜3500mm (to adapt to different chassis height of the vehicle)

Vehicle passing speed: (recommended) 1-120Km/h, under normal circumstances the entrance and exit speed control ≦ 30KM/h;

Imaging equipment: the use of high-strength compression-resistant design; equipment load-bearing: ≥ 30 tons;

Product Features：

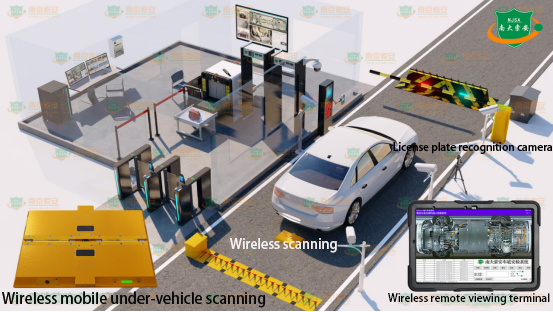

1. Suitcase loading, mobile and portable, free of construction pre-embedded free installation, can be placed directly on the road, rapid arming, the vehicle chassis clamping prohibited substances or vehicle conditions for security checks. The traditional mobile scanning need to configure air box, on-site wiring installation layout, not really mobile and portable.

2. Terminal PAD for remote inspection, more lightweight and easy to connect the scanner front-end WiFi signals, remote vehicle chassis inspection, the front vehicle chassis inspection images transmitted to the PAD terminal, which allows on-site security personnel to quickly and conveniently carry out security checks, greatly improving the efficiency of security work, and enhance the level of security control technology.

3. License plate recognition and binding information, the vehicle drives through the completion of the vehicle chassis scanning, the bottom of the vehicle being inspected image acquisition, immediately on the flat panel to display high-definition color complete vehicle chassis image. To determine whether the bottom of the vehicle to add prohibited items or entrainment control items, hiding people involved in crime or vehicles have been illegally modified or there are hidden dangers of safe driving.

4. Bidirectional scanning, the device supports inbound and outbound direction bidirectional scanning, can be viewed in the flat terminal vehicle driving direction.

5. The inspector is equipped with automatic vehicle detection module, which can automatically detect incoming vehicles and automatically fill in the light underneath the vehicle. Can also be in the case of insufficient light, automatically fill light to the camera, so that the vehicle chassis inspection more clearly. At the same time, the brightness of the fill light can be adjusted.

6. Historical comparison, the same license plate vehicle inspection for many times, the system automatically pop-up comparison box for historical image comparison, to improve the efficiency and accuracy of the vehicle chassis inspection.

7. Each time the vehicle inspection results can be queried, the information includes license plate number, the date and time of the incoming vehicle, the direction of the incoming vehicle, the vehicle chassis image when inspected and other information. Inspection results can be viewed repeatedly and saved for archiving. It can be stored locally or uploaded on the cloud, and remotely supervised and checked back.
