Product Description

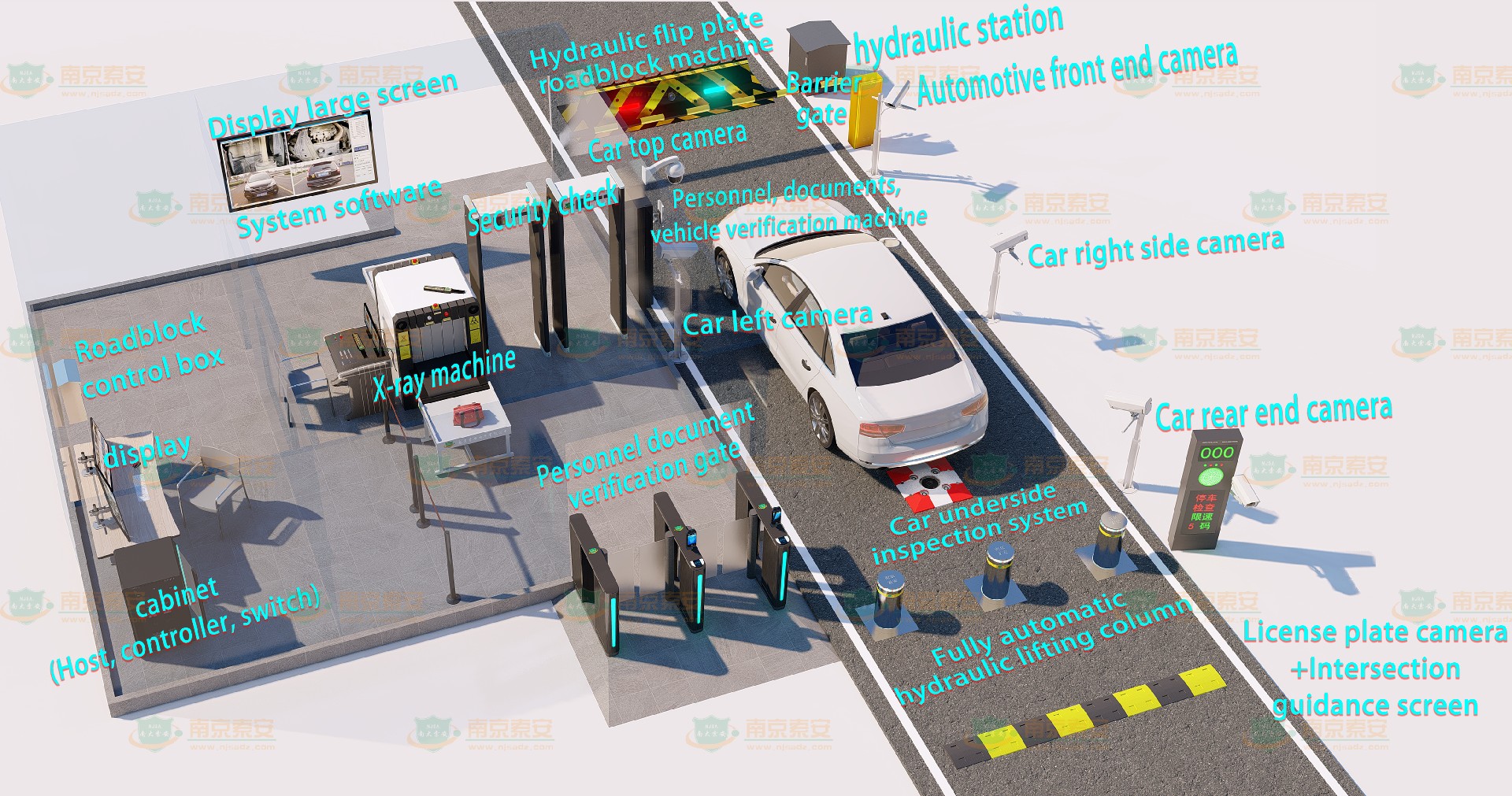

 JZ600-D5 series under vehicle security check monitoring and photography system (also known as: undercarriage monitoring, buried camera, undercarriage security check, undercarriage detector, undercarriage inspection, undercarriage anti-hiding) is a set of automatic under vehicles for image acquisition, display, control, video recording, capture as one of the vehicle security check management system. The system can effectively prevent the concealment of bombs, weapons, biochemical dangerous goods and dangerous people from entering and leaving important places under the vehicle; prevent the carrying of drugs, illegal smuggled goods and even illegal immigrants under the vehicle through the checkpoint, the product has the characteristics of high imaging clarity, stable and reliable system operation, simple and quick installation. It is suitable for military protection targets such as ammunition depots, military bases, military electronic research institutes, political and legal units such as prisons, detention centres, labour camps, courts, large exhibition halls, museums, and financial areas such as bank vaults, etc. It is used to monitor and check the underside of vehicles and other targets to prevent escape and infiltration.

Product Parameters

• All internal parts have been treated with anti-corrosion, anti-penetration, hot-dip galvanization, electrostatic spraying and so on.

• Lens: Horizontal field of view 180 °, vertical field of view 100 °

• Fill light: 4 or 2 LED fill light, using intelligent auto-sensing fill light

• General features: anti-flicker, mirroring, password protection, video masking, watermarking technology, IP address filtering

• Image: resolution of not less than 2560 × 1440 @ 25fps, in the resolution of the output real-time image stream smoothing settings, to adapt to different scenarios on the image quality, smoothness of different requirements

• Security services: support for three-level user rights management, support for authorized users and passwords, support for IP address filtering.

• Support HTTPS and other security authentication, support for the creation of the certificate of the book; initial equipment to change the password on boot, to protect the password security.

• Support user login locking mechanism.

• Panel using more than 20MM thickness of the military high-quality high-strength pressure-resistant wear-resistant corrosion-resistant metal steel plate to protect the equipment, can withstand more than 56 tons of large vehicles crushed.

• The monitoring window adopts waterproof step-type nanotechnology with high transparency, high strength, anti-pressure, wear-resistant, electrically heated and defogged panoramic window.

• High-strength structure, fully sealed body modular design, for a variety of harsh conditions or dangerous work place;

• Built-in ultra-wide viewing angle distortion-free grade HD digital camera Auto iris/auto backlight compensation;

• Military grade rugged metal parts, split unit design, fully sealed structure, waterproof, corrosion-proof, shockproof, pressure-proof, condensation-proof;

• Can be detected by ground sensing, wireless radar, laser detection, intelligent detection can be intelligent detection of vehicles coming and going and automatically enable the closure of the auxiliary high-power surface light source lighting;

• Built-in temperature, humidity detector, automatic control of heating, dehumidification, etc., no longer worry about condensation phenomenon in the outdoor road surface;

• Two-way anti-roller protection design, each single closed module can be automatically raised and lowered after being subjected to external tire force;

• Innovative installation and use, suitable for ammunition depots, military bases, military electronics research institutes and other military protection targets, prisons, detention centers, courts, procuratorates, public security and other political and legal units, large exhibition halls, museums, and bank vaults and other financial and other areas of the main corridor or entrance and exit to monitor and inspect the bottom of the vehicle and other targets, anti-defection, prevent infiltration of anti-terrorism security checks;

• Indoor/outdoor all-weather use: waterproof, corrosion-resistant, shockproof, anti-pressure, anti-condensation and anti-high and low temperature.

• Auxiliary lighting control: manual, automatic (radar, laser)

Product Advantages

Passed: "National Security Alarm System Products Quality Inspection Centre" testing enterprise.

Product features: 3 megapixel, 5 megapixel, 4K, 8K camera and appearance colour customization

Product patent: A kind of panoramic vehicle chassis photo system registered by the State Intellectual Property Office Practical patent number: 2018221538501

Product features

Automatic capture function check: The under vehicle image capture component should be able to automatically capture the underbody image of the vehicle, and real-time monitoring of the underbody and automatic video recording of incoming vehicles. The undercarriage image should be displayed in the window.

Auto-sensing fill light module: When the vehicle passes, the component should be able to automatically sense and start the light source lighting, and when the vehicle leaves the system, it should be able to automatically sense and turn off the lighting.

The under vehicle monitoring window shall be defogged to prevent the effects of condensation from the hot sun and heavy rain.

Enclosure protection level: overall protection level in accordance with IP68 (1h immersion at a depth of 1m underwater) of GB 4208-2008;

The control box can monitor the temperature and humidity inside the device in real time, can be programmed to automatically control the work of the internal air conditioning and heating system, and control the automatic opening and closing of the vehicle testing equipment for auxiliary lighting and other fully automatic management.

Compression-resistant device resistant to being run over by large vehicles.

High strength construction For use in harsh or hazardous working conditions.

Built-in multi-million HD digital camera Automatic focus / automatic aperture / automatic backlight compensation

Built-in omni-directional head with adjustable limit switch

Built-in decoder, RS485 communication method, including various control protocols

Rugged metal parts, fully sealed structure, waterproof, corrosion-proof, shock-proof, pressure-proof, condensation-proof

Manual and automatic lighting activation at night

Built-in temperature detector, automatic control of heaters and fans

Installation and use, indoor/outdoor use Waterproof, corrosion-proof, shock-proof, pressure-proof

Auxiliary lighting control: manual, automatic (light sensitive)

Construction: Panel metal steel plate, the bottom barrel is made of double-layer steel plate with one-time die-casting vacuum sandwich, all internal parts have been treated with anti-corrosion, anti-penetration, hot-dip galvanizing and electrostatic spraying.

Spraying layer: hot-dip galvanized outer surface, black polyester powder electrostatic spraying layer, anti-corrosion

Lighting: Waterproof lamp with stainless steel face, aluminium barrel and toughened glass window

Environment: Indoor/outdoor

Temperature: -23°C to 49°C

Weight per unit: 50KG Transport weight 60KG
