When someone is concealed inside the vehicle, the concealer’s heart will beat rhythmically. This vibration will be transmitted to the suspension of the vehicle, the bottom of the compartment, etc., by connecting the sensor and the vehicle under test, this vibration is collected and passed through the data cable Transfer back to the data analysis equipment, analysis software for analysis, the calculation range of the analysis software is accurately concentrated in the frequency range of the heartbeat, based on this vibration analysis, the display terminal can clearly display whether there is anyone, and accompanied by a sound alarm.

Sensing method: Analyze the rhythmic heartbeat vibration conducted by the measured object through the sensor

Induction target: human (the location, posture, and physical condition of the concealer do not necessarily affect the test results)

Detected vehicle types: all vehicle types (cars, buses, trucks, container containers, etc.)

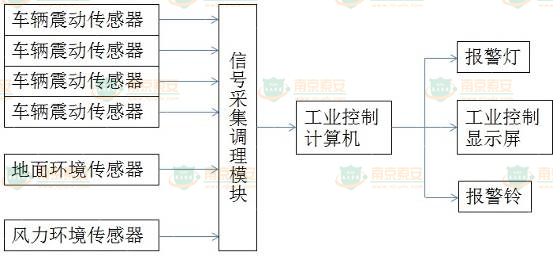

Number of sensors: 4 vehicle sensors, 1 ground sensor, and IP66 dustproof and waterproof certification. 1 wind IEPE sensor.

Detection time: each time to complete the detection time ≤ 30 seconds

Display terminal: touch screen industrial computer

Alarm mode: When a person is detected hiding, sound, light and clear screen display alarm.

Software: Chinese software with friendly interface.

Vehicle data management function: The system supports vehicle entry and exit management functions, which can realize the functions of registration, test records, result output, backup, and login personnel management for entering and leaving vehicles

Equipment connection mode: Imported cable and cable box connection, the cable covers a physical test distance of not less than 15 meters, and the cable shaft adopts a spring-back type, which is easy to use.

Environmental vibration reduction function: The software has a function of reducing environmental factors inside the software, which can effectively weaken the environmental impact through the software

Working hours: can work 24 hours a day

Power supply mode: 90v-260v AC

Operator: After training, it can be operated by one person
