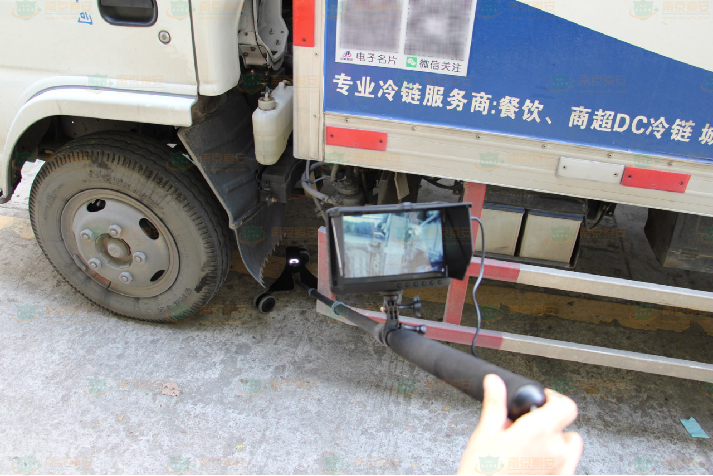

Vehicle undercarriage inspection with tugs Multi-angle details for vehicle multi-angle inspection JZ600-D9-A is a multifunctional 360-degree rotating vehicle inspection imaging system. A real 1080P dual high-definition 5 million car inspection video scanner.

在线订购

dcd0500ec3f245b9a5d0733e26f2194水印.jpg 45fbab5170ee75eb069cbaa8a7f8bc6水印.jpg

The JZ600-D9is a versatile 360 degree rotating vehicle inspection imaging system. A true 1080P dual HD 5 million vehicle inspection video scanner.

7" HD colour LCD display showing scanned images simultaneously and supporting 64GB SD card storage;

Supports photo, video and playback. Simultaneous video display without delay. The effect exceeds that of the ipone 5S.

One-touch opening sunshade and 5000mAh battery for easy portability for outdoor work.

LEMO HD digital interface, solid and durable, will not fall off.

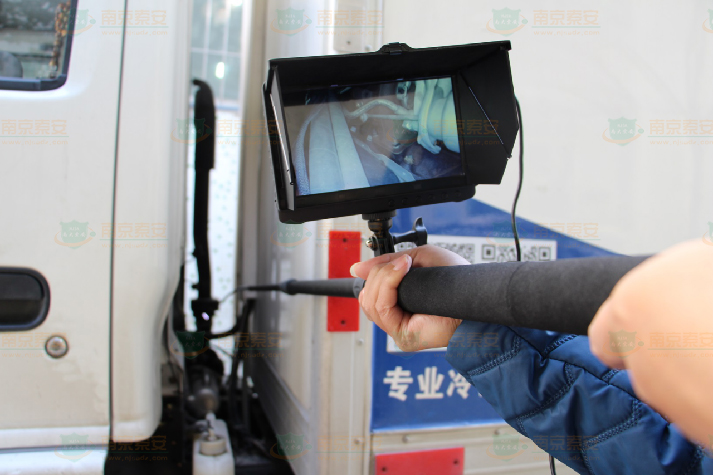

The 2m lightweight telescopic pole arm mirror is shake-free and the 5 megapixel HD camera with 6 LEDs allows you to view the real conditions in those narrow and dark places in the form of a video, so you can analyse and deal with problems with ease.

The 5 megapixel shock-resistant chassis HD camera is equipped with 16 bright LEDs to see further and more clearly.

Wear-resistant industrial grade universal chassis wheels for underbody inspection in all road conditions.

High grade pressure resistant and durable aluminium alloy outer case for easy portability.

Specification parameters:

Chassis camera	Camera devices	1/2.5 CMOS Sony
	Pixel	5 megapixels：3200（H）×1800（V）
	Image sensor size	5.6mm（H）×3.14mm（V）
	LED Light	16 high intensity LEDs
	Minimum Illumination	0.08Lux/F1.2
	Footage	3.6mm F1.2 (H )90 °Perspectives
	HDMI	FPD-LinkⅢ
	Wheels	Universal wear-resistant wheels
	Size & Weight	37 x 46mm, 35g(Camera only)
	Wire (5 core high speed cable)	Wire diameter：3.5mm Length：2.7 m
Hose camera	Camera devices	1/3 CMOS Sensor
	Pixel	5 megapixels：3200（H）×1800（V）
	Image sensor size	5.07mm（H）×3.38mm（V）
	Minimum Illumination	0.2Lux/F1.2
	LED Light	6 high intensity LEDs
	Lens	0.5mm F1.2 90 °view
	HDMI	FPD-LinkⅢ
	Size & Weight	18 x 28mm, 10g
	Wire (5 core high speed cable)	Wire diameter：3.5mm Length：3m
	Hose	162.5px long hose (1250px total length)
Telescopic Rods	Length after shrinkage：950px	Expanded length：4750px
7" HD monitor	HD video output	HDMI：1920* 1080；1280*720
	Video pixels（16：9）	HDMI：1920* 1080；1280*720
	Compression method	H.264
	Video Storage	AVI
	HDMI	FPD-LinkⅢ
	Audio Range	20HZ-20KHz AAC
	Audio compression methods	AAC
	Image format	Image pixels500万：3200（H）×1800（V）
	Memory Cards	TF card 1GB-64GB
	64GB card recording time	10-32 Hours
	Operating systems	Windows & Mac OS
	Interface	USB 2.0/AV-OUT
	Language	Multilingual
	Voltage	DC :7-24V USB DC:5V
	Current (monitoring)	600 mA
	Current (video)	700 mA
	Charger	DC 12V 2A
	Power supply	5000 mAh lithium battery
	Recording time	≥10小时
	Dimensions	177mm x120mm x 20mm
	Weight	350g

Packaging:

1*1080P 500W HD Hose Camera

1*500W HD Chassis Camera

1*7 inch HD monitor

1*2m telescopic pole

1*HD data cable

1*Charger

1*Aluminium alloy outer case

Weight after packing: 8KG

Size: the net size of the box is 64cm long, 32cm wide and 14cm high, after packing, the length is 66*35*17 high, the volume weighs 7.97KG, the actual weight after packing is about 7.5KG.
