Product Information

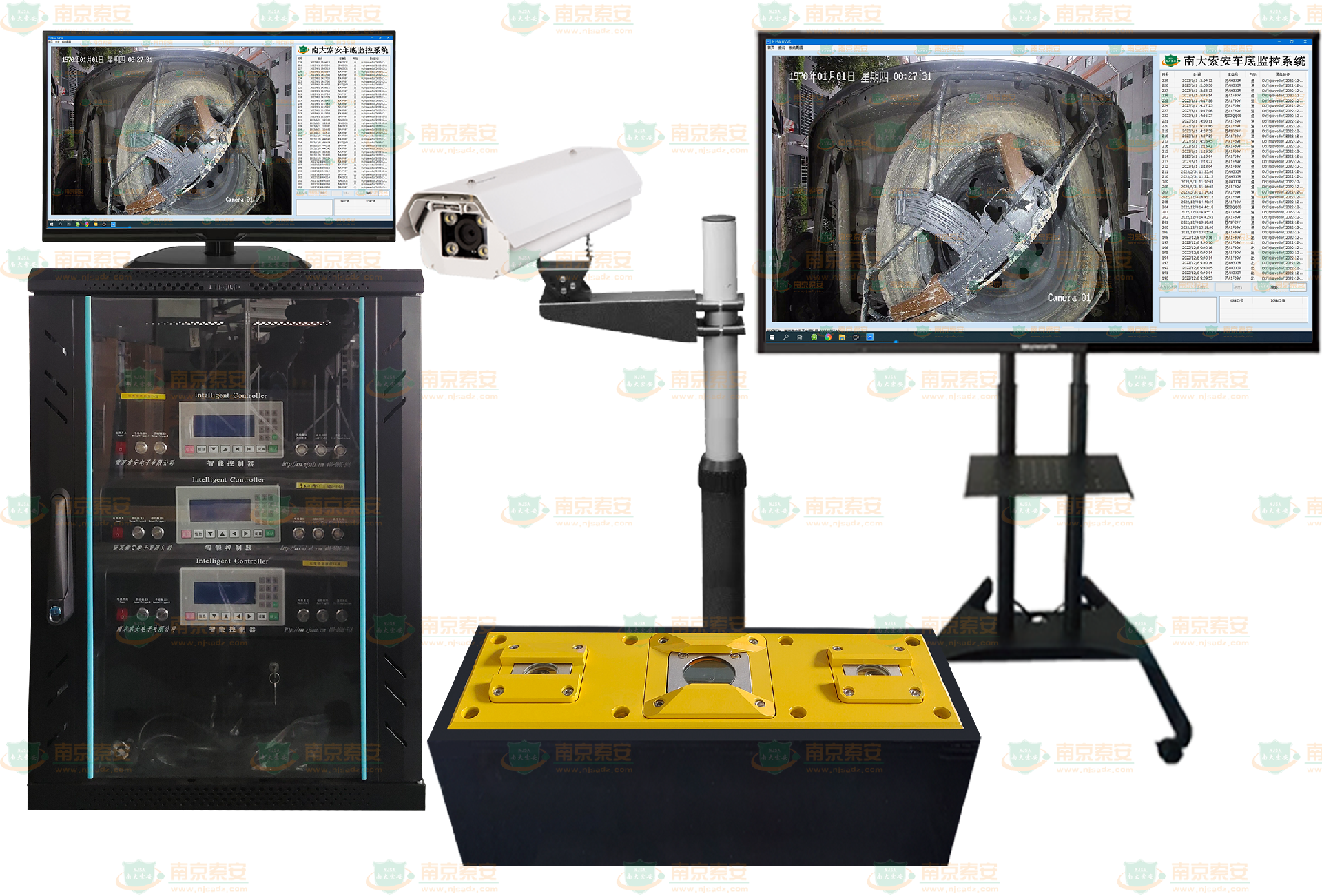

Economic version of the vehicle chassis monitoring camera system is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.

Application Scenario：

1, prisons, detention centers, drug rehabilitation centers and other entrances and exits to prevent escape inspection;

2, airports, governments, banks, embassies, ports, docks, stations, military, public security and other key places; Parking entrance in key parts; Security and anti-terrorism inspection of vehicle entrances and exits for large-scale meetings, sports meetings and other activities;

3. Anti-smuggling and anti-smuggling inspections at the checkpoints of customs and border inspection ports;

4. Vehicle performance testing lines at traffic safety checkpoints, vehicle testing centers, 4S shop maintenance workshops, new energy exchange stations, etc.

Function overview：

1, 400 Wan Chao HD complete Vehicle chassis  process video or photo record;

2. It can automatically prevent rolling and self-protection lifting, and can automatically remove dust, rain and snow and other sundries;

3, the installation height of 2CM on the ground and the two-way gentle slope can pass the inspected vehicle with low obstacles without impact;

4. Intelligent full-viewing-angle underbody fill lighting and 180-degree panoramic monitoring of underbody;

5. All-304 stainless steel is finished, which can resist being crushed by heavy vehicles for more than 56 tons, and can be waterproof for 60 hours in IP68 soaking water, and equipped with constant temperature system to prevent condensation;

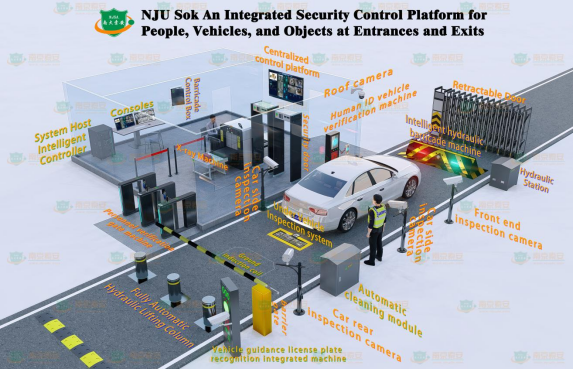

6. It can be connected to the security platform efficiently and concisely, and can also be conveniently configured with license plate recognition and roof monitoring to form a complete crossing vehicle monitoring and management system;

7. It can run under domestic operating system and embedded system environment;

8. Support multi-language interface switching.

Characteristic advantage：

Simple configuration is convenient for installation and construction and saves project investment. It can be seen as an IPC and can be directly connected to NVR
